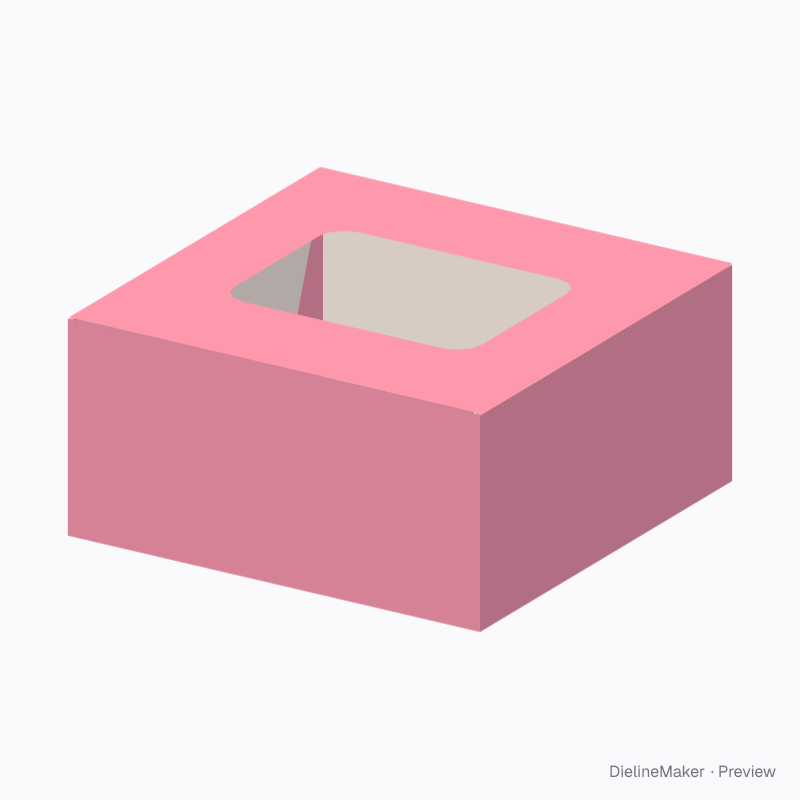

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-CAKE-BOX-01Food
Bento cake box dieline
Small kraft window box for a 4-inch lunchbox cake. A ready-sized preset of the cake box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside130 × 130 × 64 mm
Outside133.7 × 130.9 × 64.9 mm
Flat blank315.2 × 438.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-CAKE-BOX-01
- Inside size
- Length 130 · Width 130 · Height 64 mm
- Size range
- Length 60–600 · Width 60–600 · Height 30–300 mm
- Manufacturing
- 133.2 × 130.5 × 64.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.111 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- SBS 350Kraft 350FBB 400SBS 300E-flute WE-flute KF-fluteSBS 18 pt
- Good for

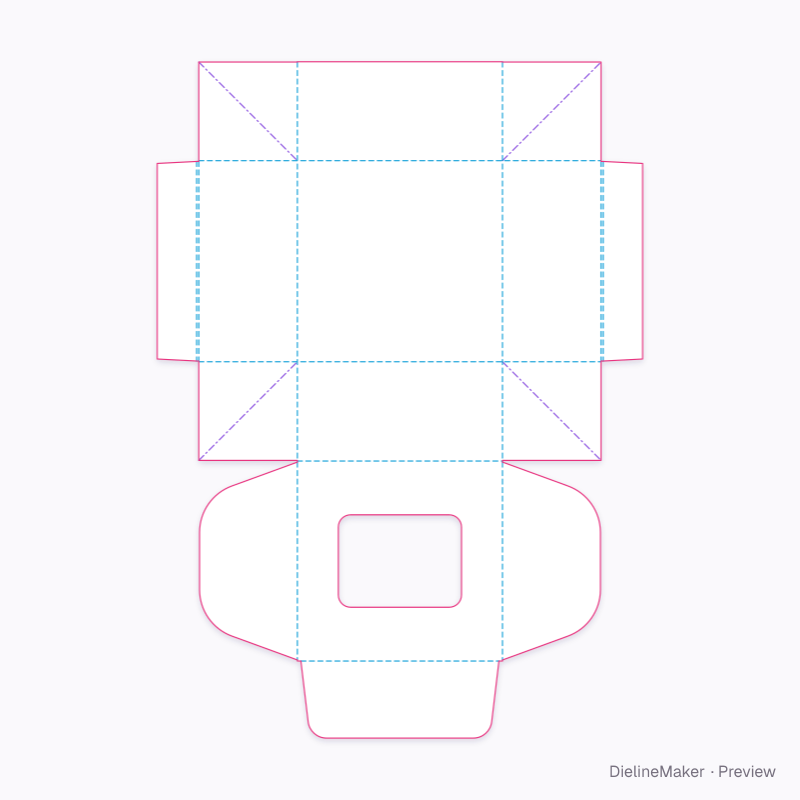

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-CAKE-BOX-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.46 mm for Kraft board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 133.2 × 130.5 | L + 2·DC + T × W + T |
| Front | 133.2 × 64.2 | L + 2·DC + T × H + T/2 |
| Back | 133.2 × 64.5 | L + 2·DC + T × H + T |
| Left end | 64 × 130.5 | W + T × H |
| Left end roll | 1.4 × 129.5 | – |
| Left end lock flap | 25.6 × 129.5 | – |
| Right end | 64 × 130.5 | W + T × H |
| Right end roll | 1.4 × 129.5 | – |
| Right end lock flap | 25.6 × 129.5 | – |
| Corner web ×4 | 64 × 64 | – × H |
| Corner web ×4 | 90.5 × 45.3 | – |
| Lid | 133.2 × 129.8 | L + 2·DC + T × W − T/2 |
| Lid ear ×2 | 63.5 × 128.4 | H − T × – |
| Front tuck | 128.6 × 50 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 10 options; the template and 3D preview follow each change.
- Front tuck depthmm
- Lid earson / off
- Lid ear depthmm
- Lock flap heightmm
- Windowon / off
- Window widthmm
- Window depthmm
- Window cornersmm
- Thumb notchon / off
- Food contacton / off
The cake box family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this bento cake box yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
