Donut box 6-pack dieline
Shallow box for six doughnuts. A ready-sized preset of the cake box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside280 × 190 × 70 mm
Outside284 × 191 × 71 mm
Flat blank482.5 × 571 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-CAKE-BOX-01
- Inside size
- Length 280 · Width 190 · Height 70 mm
- Size range
- Length 60–600 · Width 60–600 · Height 30–300 mm
- Manufacturing
- 283.5 × 190.5 × 70.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.241 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350Kraft 350FBB 400SBS 300E-flute WE-flute KF-fluteSBS 18 pt
- Good for

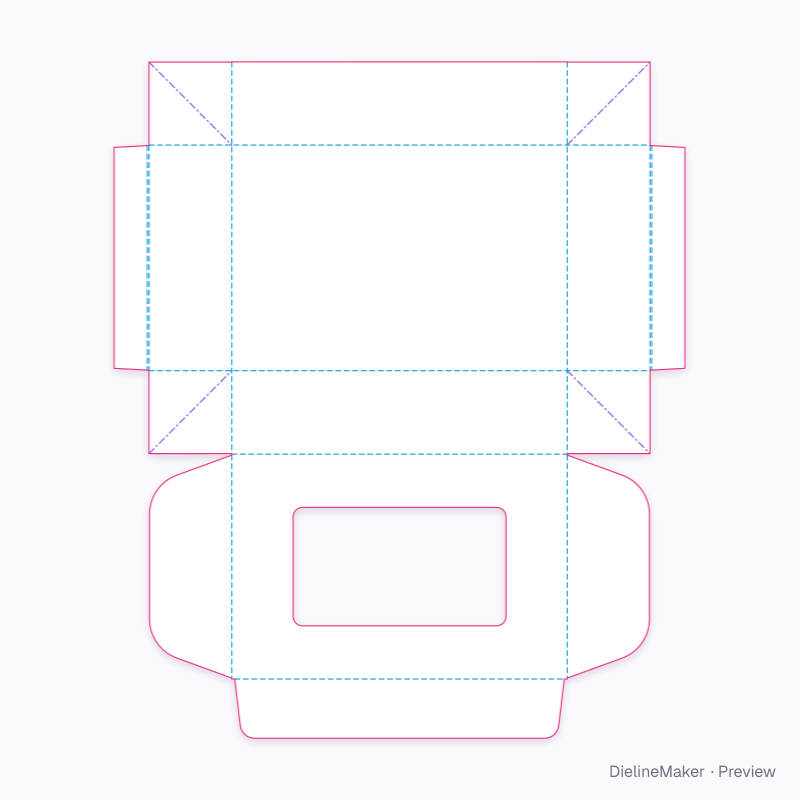

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-CAKE-BOX-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 283.5 × 190.5 | L + 2·DC + T × W + T |
| Front | 283.5 × 70.3 | L + 2·DC + T × H + T/2 |
| Back | 283.5 × 70.5 | L + 2·DC + T × H + T |
| Left end | 70 × 190.5 | W + T × H |
| Left end roll | 1.5 × 189.5 | – × W − T |
| Left end lock flap | 28 × 189.5 | – × W − T |
| Right end | 70 × 190.5 | W + T × H |
| Right end roll | 1.5 × 189.5 | – × W − T |
| Right end lock flap | 28 × 189.5 | – × W − T |
| Corner web ×4 | 70 × 70 | H × H |
| Corner web ×4 | 99 × 49.5 | – |
| Lid | 283.5 × 189.8 | L + 2·DC + T × W − T/2 |
| Lid ear ×2 | 69.5 × 188.3 | H − T × – |
| Front tuck | 278.5 × 50 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 10 options; the template and 3D preview follow each change.
- Front tuck depthmm
- Lid earson / off
- Lid ear depthmm
- Lock flap heightmm
- Windowon / off
- Window widthmm
- Window depthmm
- Window cornersmm
- Thumb notchon / off
- Food contacton / off
