DM-INLINE-CARRIER-01Carriers
Flat inline three-bottle carrier dieline

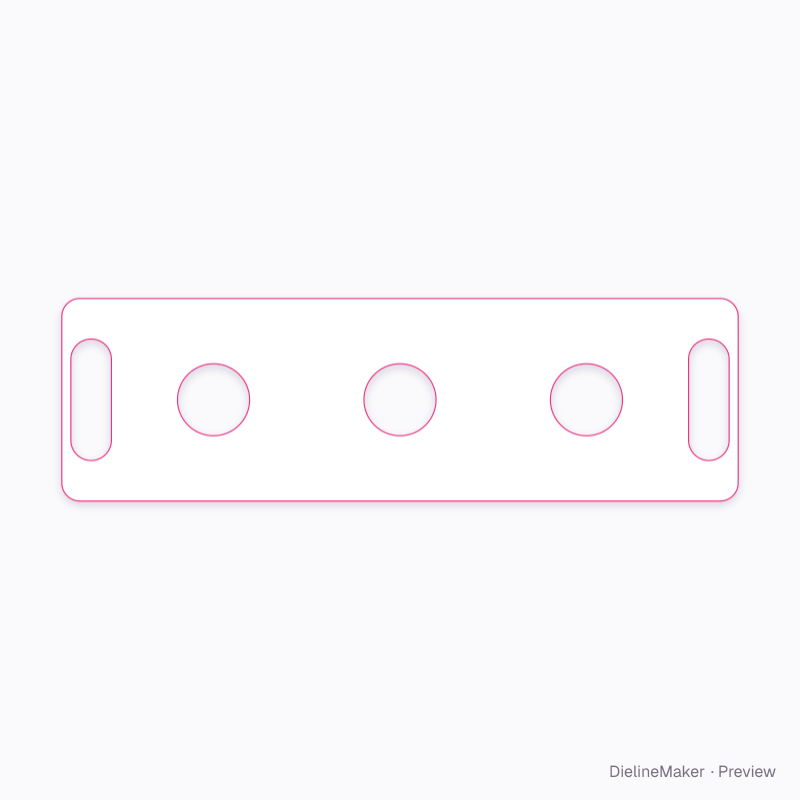

A flat card with three plain neck holes in a row and a hand slot at each end. A ready-sized preset of the paperboard can collar — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside300 × 90 mm
Outside300 × 90 mm
Flat blank300 × 90 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-INLINE-CARRIER-01
- Inside size
- Carrier width 300 · Carrier depth 90 mm
- Size range
- Carrier width 80–400 · Carrier depth 60–280 mm
- Manufacturing
- 300 × 90 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.027 m² · about 21 up on a 720 × 1020 mm sheet
- Default board
- Folding boxboard 400 g · 0.6 mm caliper
- Board options
- FBB 400Kraft 350SBS 350SBS 18 pt
- Good for

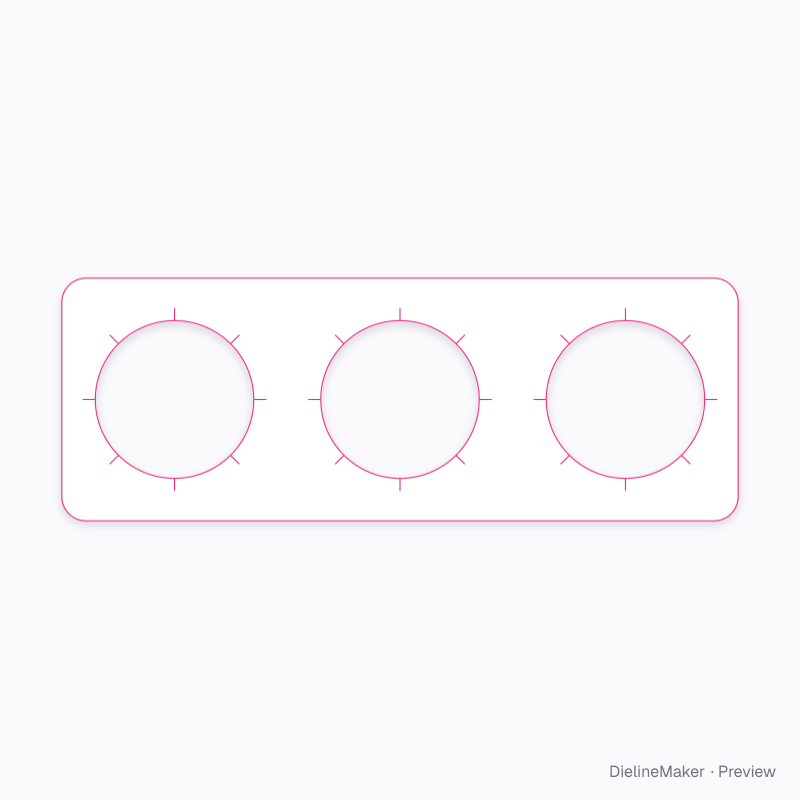

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 7 options; the template and 3D preview follow each change.
