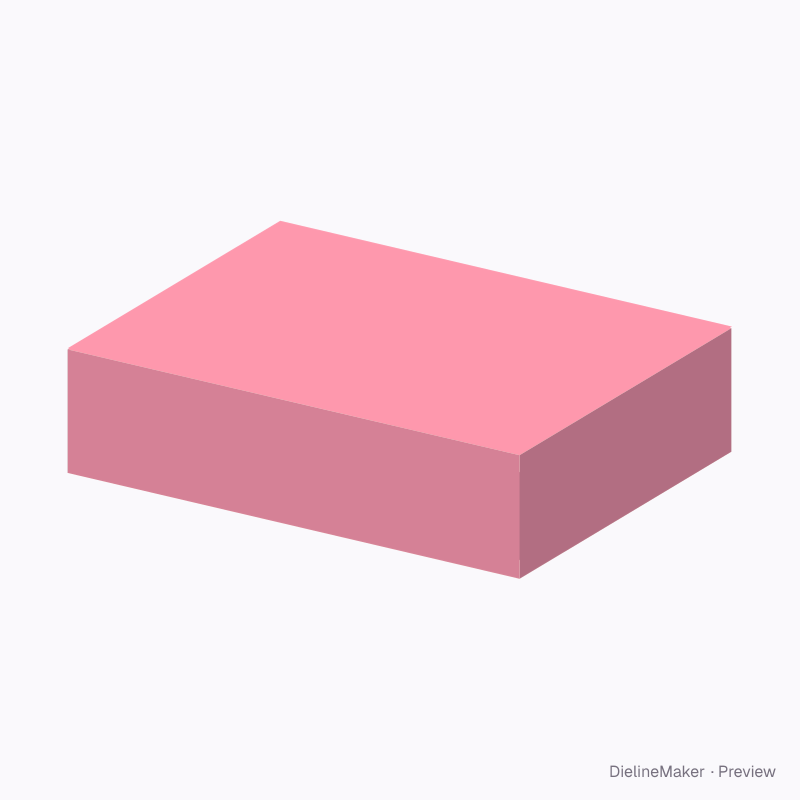

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-RETURN-WINDOW-LID-01Trays & lids
Bakery tray with window frame and cover dieline
A glued-corner tray whose lid is a doubled window frame and whose front carries a full cover that closes over it. A ready-sized preset of the tray with returned window frame and opposed cover — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside200 × 150 × 50 mm
Outside201 × 151 × 51 mm
Flat blank300 × 699.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-RETURN-WINDOW-LID-01
- Inside size
- Length 200 · Width 150 · Height 50 mm
- Size range
- Length 60–450 · Width 50–350 · Height 15–150 mm
- Manufacturing
- 200.5 × 150.5 × 50.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.156 m²
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350SBS 300SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-RETURN-WINDOW-LID-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 200 × 150 | L × W |
| Front wall | 200 × 50 | L × H |
| Back wall | 200 × 50 | L × H |
| Left wall | 50 × 150 | H × W |
| Right wall | 50 × 150 | H × W |
| Corner glue flap ×4 | 12 × 35.6 | – |
| Window lid | 200 × 150 | L × W |
| Window frame return | 199 × 149 | L − 2T × W − 2T |
| Opposed cover | 200 × 150.5 | L × W + T |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Window frame widthmm
- Opposed coveron / off
The tray with returned window frame and opposed cover family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this bakery tray with window frame and cover yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
