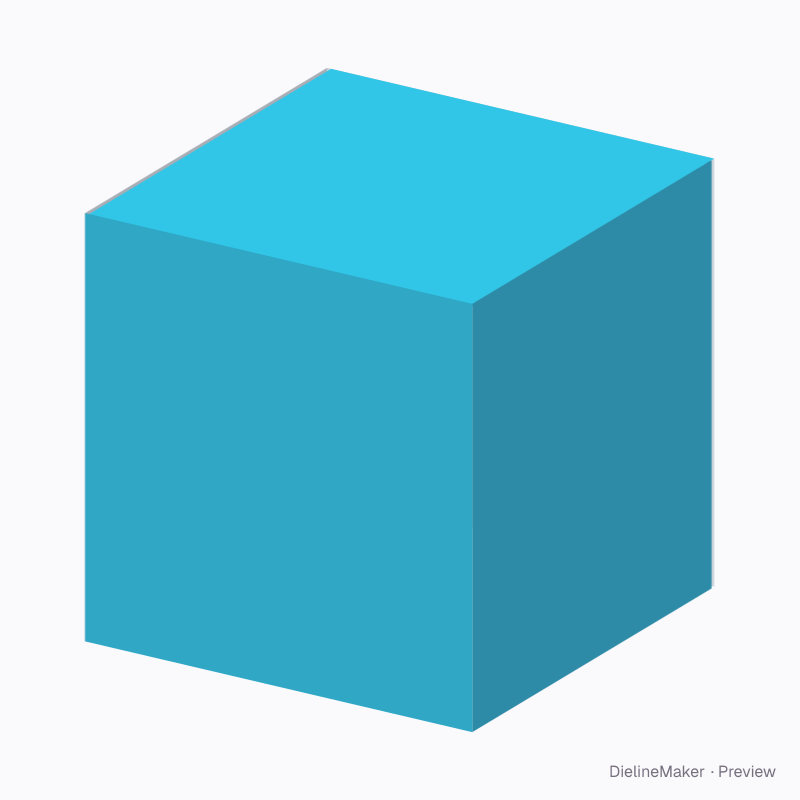

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0204Shipping
Cube carton 300×300×300 dieline
On a cube every flap meets in the middle. A ready-sized preset of the centre special box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 300 × 300 mm
Outside306.4 × 306.4 × 312.8 mm
Flat blank1241.6 × 609.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0204
- Inside size
- Length 300 · Width 300 · Height 300 mm
- Size range
- Length 80–1200 · Width 60–1000 · Height 40–1200 mm
- Manufacturing
- 303.2 × 303.2 × 306.4 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.741 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute KE-flute WF-flute
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0204 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 303.2 × 306.4 | L + T × H + 2T |
| Left side | 303.2 × 306.4 | W + T × H + 2T |
| Back | 303.2 × 306.4 | L + T × H + 2T |
| Right side | 300 × 306.4 | W × H + 2T |
| Glue flap | 32 × 306.4 | – |
| Bottom outer flap | 300 × 151.6 | – |
| Bottom inner flap ×2 | 296.8 × 151.6 | – |
| Bottom outer flap | 296.8 × 151.6 | – |
| Top outer flap | 300 × 151.6 | – |
| Top inner flap ×2 | 296.8 × 151.6 | – |
| Top outer flap | 296.8 × 151.6 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Hand holeson / off
The centre special box family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this cube carton 300×300×300 yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
