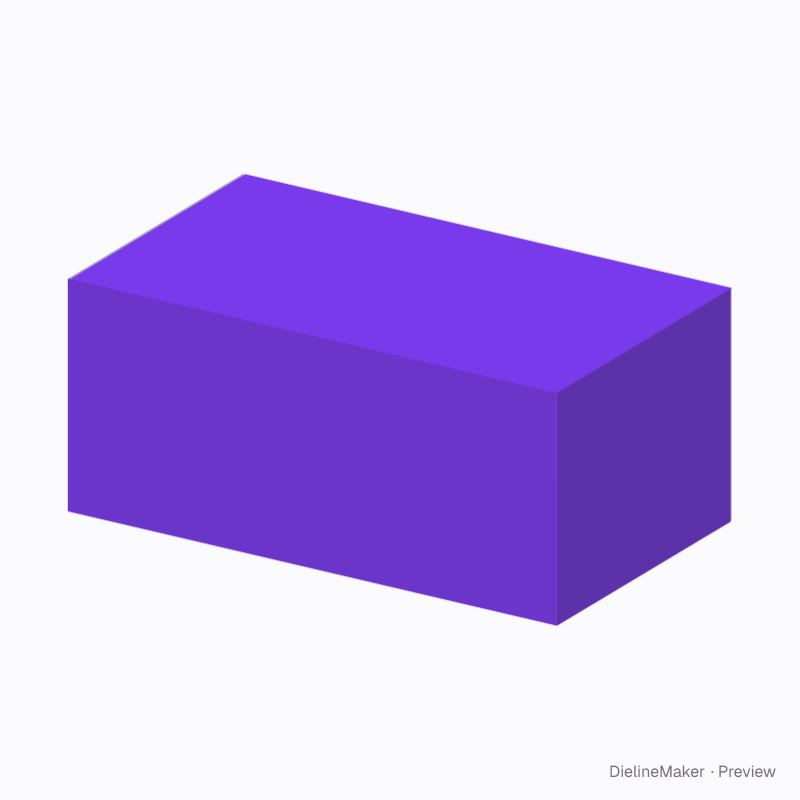

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0204Shipping
E-commerce carton 350×200×150 dieline
Fully closed top and bottom for a cleaner unboxing. A ready-sized preset of the centre special box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside350 × 200 × 150 mm
Outside353.2 × 203.2 × 156.4 mm
Flat blank1124.8 × 504.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0204
- Inside size
- Length 350 · Width 200 · Height 150 mm
- Size range
- Length 80–1200 · Width 60–1000 · Height 40–1200 mm
- Manufacturing
- 351.6 × 201.6 × 153.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.452 m²
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- B-fluteEB doubleE-flute KE-flute WF-flute
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0204 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 351.6 × 153.2 | L + T × H + 2T |
| Left side | 201.6 × 153.2 | W + T × H + 2T |
| Back | 351.6 × 153.2 | L + T × H + 2T |
| Right side | 200 × 153.2 | W × H + 2T |
| Glue flap | 20 × 153.2 | – × H + 2T |
| Bottom outer flap | 350 × 100.8 | L × – |
| Bottom inner flap ×2 | 198.4 × 175.8 | W − T × – |
| Bottom outer flap | 348.4 × 100.8 | L − T × – |
| Top outer flap | 350 × 100.8 | L × – |
| Top inner flap ×2 | 198.4 × 175.8 | W − T × – |
| Top outer flap | 348.4 × 100.8 | L − T × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Hand holeson / off
