FEFCO 0204Shipping
Bulk refill shipping carton — Centre special box dieline
Editable 500 × 350 × 300 mm starting point using centre special box. Adjust the dimensions to your product before prototyping. A ready-sized preset of the centre special box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside500 × 350 × 300 mm
Outside506.4 × 356.4 × 312.8 mm
Flat blank1741.6 × 809.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0204
- Inside size
- Length 500 · Width 350 · Height 300 mm
- Size range
- Length 80–1200 · Width 60–1000 · Height 40–1200 mm
- Manufacturing
- 503.2 × 353.2 × 306.4 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 1.234 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute KE-flute WF-flute
- Good for
The flat dieline

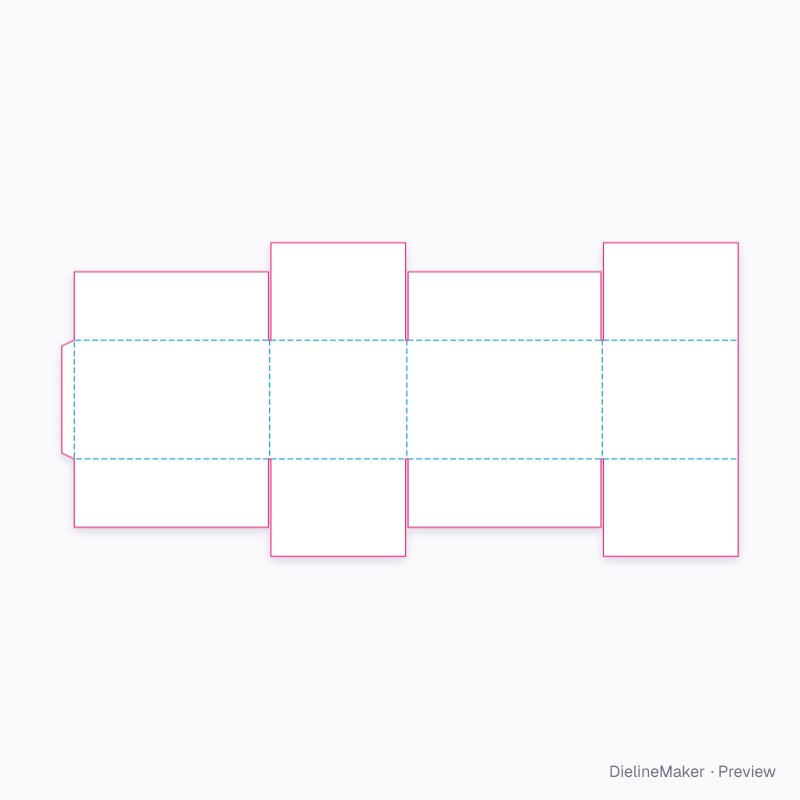

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0204 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 503.2 × 306.4 | L + T × H + 2T |
| Left side | 353.2 × 306.4 | W + T × H + 2T |
| Back | 503.2 × 306.4 | L + T × H + 2T |
| Right side | 350 × 306.4 | W × H + 2T |
| Glue flap | 32 × 306.4 | – × H + 2T |
| Bottom outer flap | 500 × 176.6 | L × – |
| Bottom inner flap ×2 | 346.8 × 251.6 | W − T × – |
| Bottom outer flap | 496.8 × 176.6 | L − T × – |
| Top outer flap | 500 × 176.6 | L × – |
| Top inner flap ×2 | 346.8 × 251.6 | W − T × – |
| Top outer flap | 496.8 × 176.6 | L − T × – |
