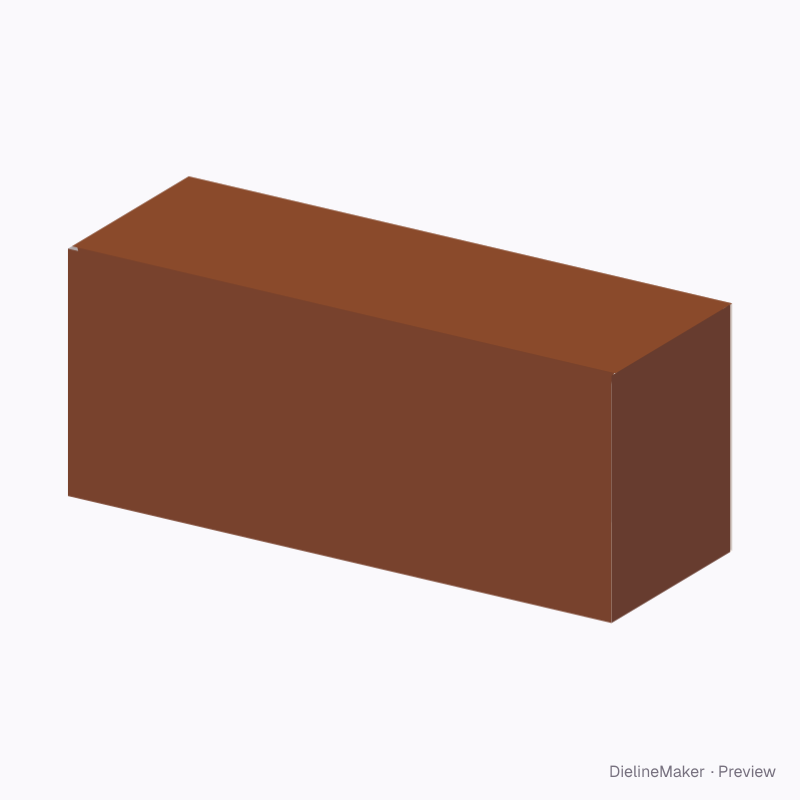

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0713Shipping
Candle trio box 270×95×110 dieline
Gift box for three jar candles in a row. A ready-sized preset of the crash-lock tuck-top box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside270 × 95 × 110 mm
Outside273.2 × 98.2 × 116.4 mm
Flat blank754.8 × 280.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0713
- Inside size
- Length 270 · Width 95 · Height 110 mm
- Size range
- Length 80–800 · Width 50–600 · Height 50–800 mm
- Manufacturing
- 271.6 × 96.6 × 113.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.159 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- E-flute WE-flute KB-fluteF-fluteEB double
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0713 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 271.6 × 113.2 | L + T × H + 2T |
| Left side | 96.6 × 113.2 | W + T × H + 2T |
| Back | 271.6 × 113.2 | L + T × H + 2T |
| Right side | 95 × 113.2 | W × H + 2T |
| Glue flap | 20 × 113.2 | – × H + 2T |
| Crash-lock flap (back) | 271.6 × 58.8 | L + T × – |
| Glued web | 68.3 × 33.7 | – |
| Bottom side flap | 96.6 × 47.5 | W + T × – |
| Crash-lock flap (front) | 271.6 × 58.8 | L + T × – |
| Glued web | 33.7 × 68.3 | – |
| Bottom side flap | 95 × 47.5 | W × – |
| Top closure | 271.6 × 93.4 | L + T × W − T |
| Top tuck | 268.4 × 15 | L − T × – |
| Top dust flap | 89.2 × 55 | – |
| Top dust flap | 87.6 × 55 | – |
