Parametric structureCarriers
Six small cups carrier — Cup carrier dieline
Editable 245 × 175 × 165 mm starting point using cup carrier. Adjust the dimensions to your product before prototyping. A ready-sized preset of the cup carrier — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside245 × 175 × 165 mm
Outside245.9 × 175.9 × 165 mm
Flat blank334.5 × 680 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Length 245 · Depth 175 · Height 165 mm
- Size range
- Length 70–600 · Depth 90–600 · Height 70–320 mm
- Manufacturing
- 245.5 × 175.5 × 165 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.184 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- Kraft 350FBB 400SBS 350F-fluteSBS 18 pt
- Good for
The flat dieline

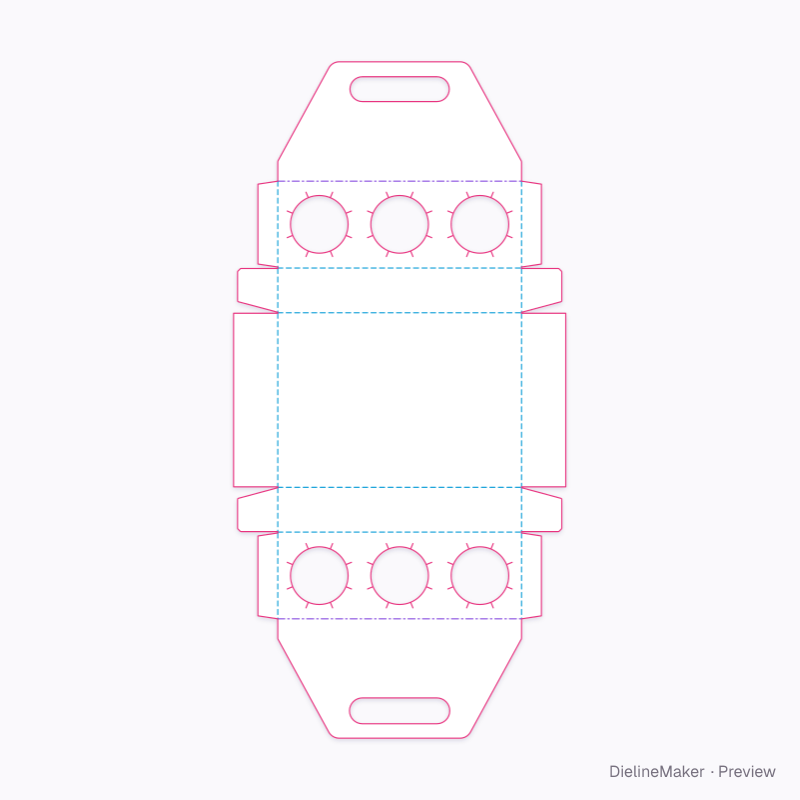

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.46 mm for Kraft board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 245.5 × 175.5 | L + T × W + T |
| Front | 245.5 × 45 | L + T × deck |
| Back | 245.5 × 45 | L + T × deck |
| Front corner ear ×2 | 40.5 × 44.1 | – |
| Back corner ear ×2 | 40.5 × 44.1 | – |
| Right side | 44.5 × 174.5 | W − T × deck − T |
| Left side | 44.5 × 174.5 | W − T × deck − T |
| Front deck | 245.5 × 87.3 | L + T × W/2 − T/2 |
| Back deck | 245.5 × 87.3 | L + T × W/2 − T/2 |
| Deck glue flap ×4 | 20 × 86.3 | – |
| Front handle | 245.5 × 120 | L + T × H − deck |
| Back handle | 245.5 × 120 | L + T × H − deck |
Adjustable in the editor
Beyond the size and board, this structure exposes 8 options; the template and 3D preview follow each change.
