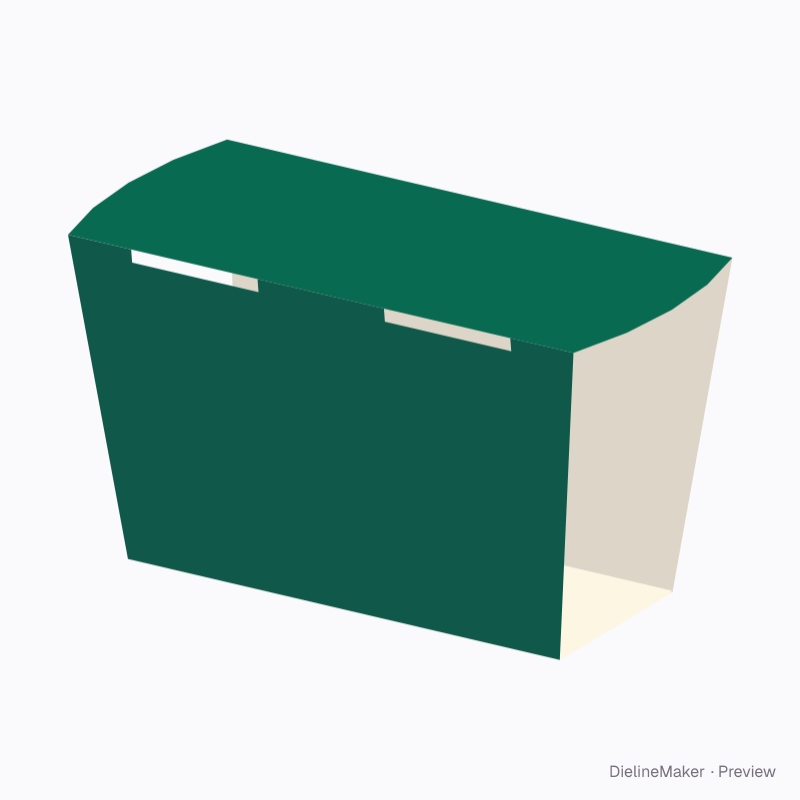

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA E14.20.00.00Carriers
2-cup glued wrap 160×80×95 dieline
Two cups in a row, glued under the tapered base; the rims lock into slots under the top. A ready-sized preset of the cup wrap-around multipack — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside160 × 80 × 95 mm
Outside160 × 81 × 96 mm
Flat blank343.6 × 171.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA E14.20.00.00
- Inside size
- Top length 160 · Top width 80 · Height 95 mm
- Size range
- Top length 60–600 · Top width 50–400 · Height 30–300 mm
- Manufacturing
- 160 × 80.5 × 95.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.052 m² · about 10 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350GD2 350Kraft 350FBB 400SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA E14.20.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Glue lap | 14 × 136.7 | – |
| Side ×2 | 96.2 × 160 | – × L |
| Top | 80.5 × 172 | W + T × – |
| Bottom | 56.7 × 136.7 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 7 options; the template and 3D preview follow each change.
- Construction5 options
- Cups per rowcount
- Wall slope°
- End taper°
- Rim slot depthmm
- Rim slot lengthmm
- Lid end archmm
