The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA E16.20.00.00Carriers
4-pot double-row wrap 2×2 150×150×60 dieline
Four yoghurt or dessert pots in two rows: double base and a lined wall. A ready-sized preset of the cup wrap-around multipack — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside150 × 150 × 60 mm
Outside150 × 151 × 61 mm
Flat blank615.4 × 150 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA E16.20.00.00
- Inside size
- Top length 150 · Top width 150 · Height 60 mm
- Size range
- Top length 60–600 · Top width 50–400 · Height 30–300 mm
- Manufacturing
- 150 × 150.5 × 60.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.086 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350GD2 350Kraft 350FBB 400SBS 18 pt
- Good for

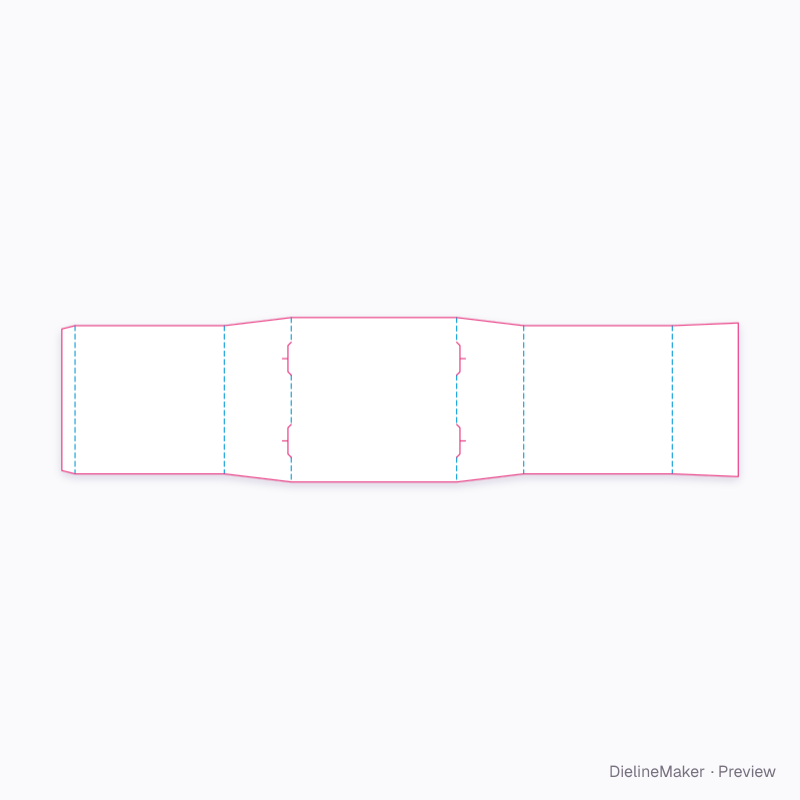

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Construction5 options
- Cups per rowcount
- Wall slope°
- End taper°
- Heel lock lengthmm
- Heel lock depthmm
The cup wrap-around multipack family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset

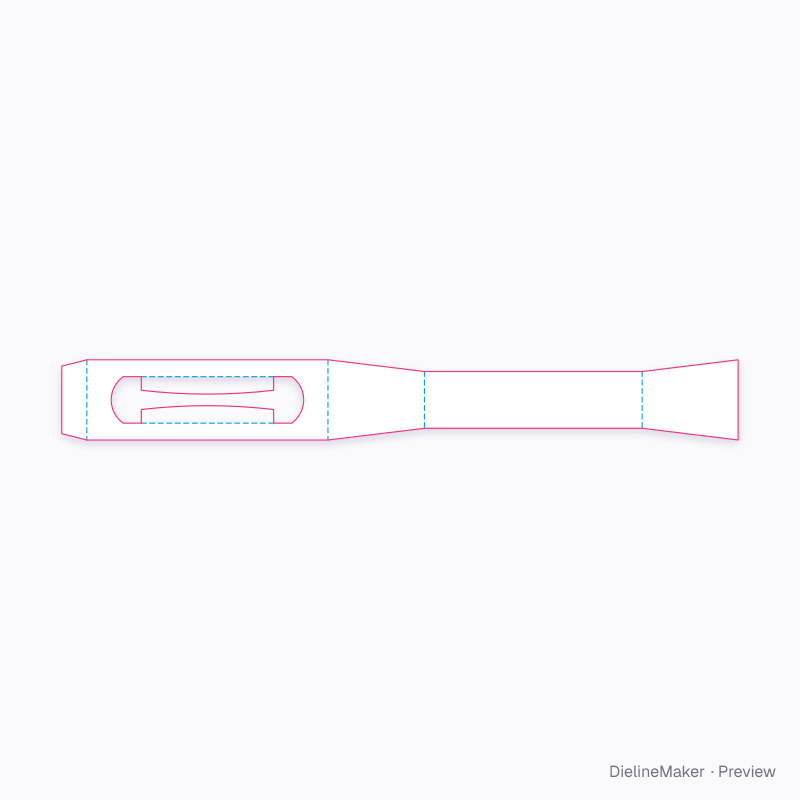

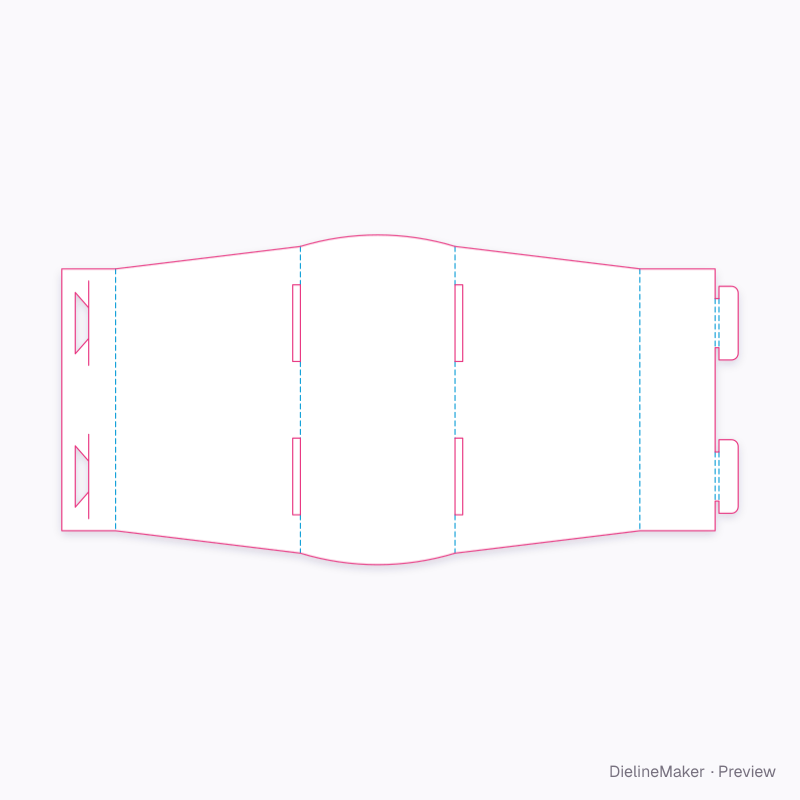

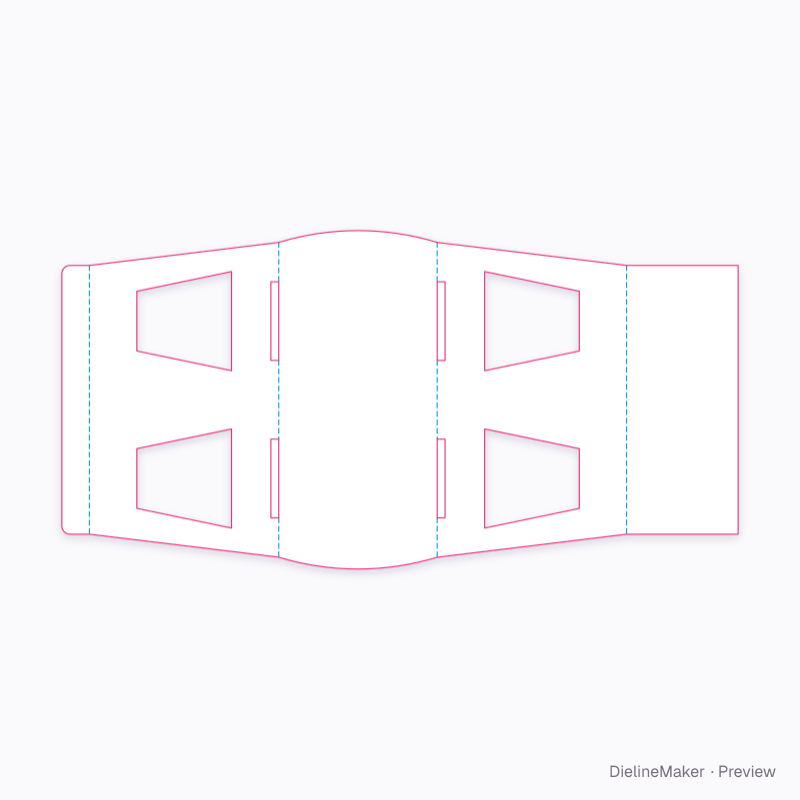

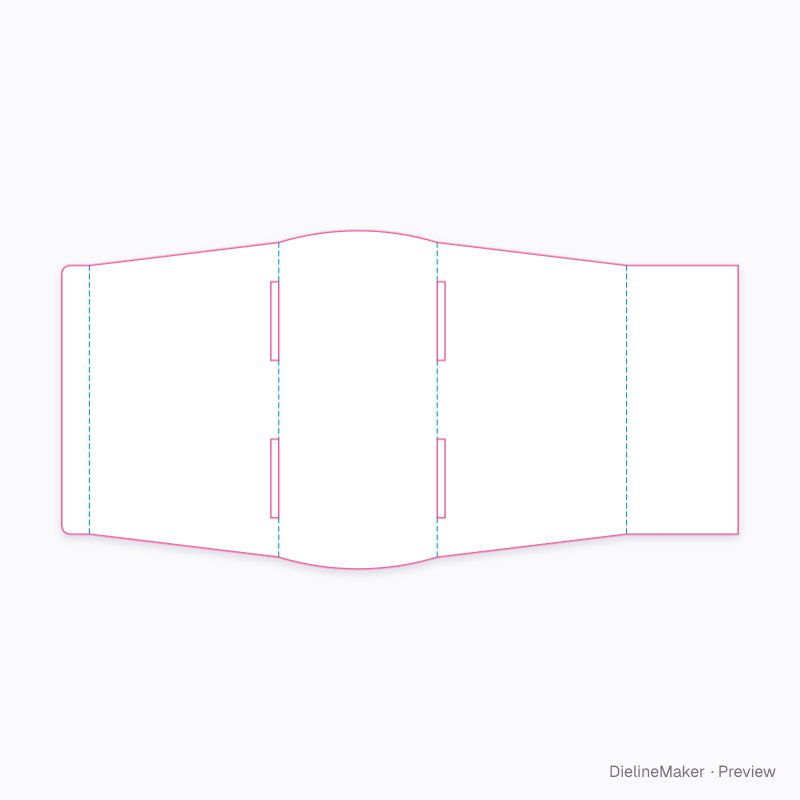

Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this 4-pot double-row wrap 2×2 150×150×60 yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
