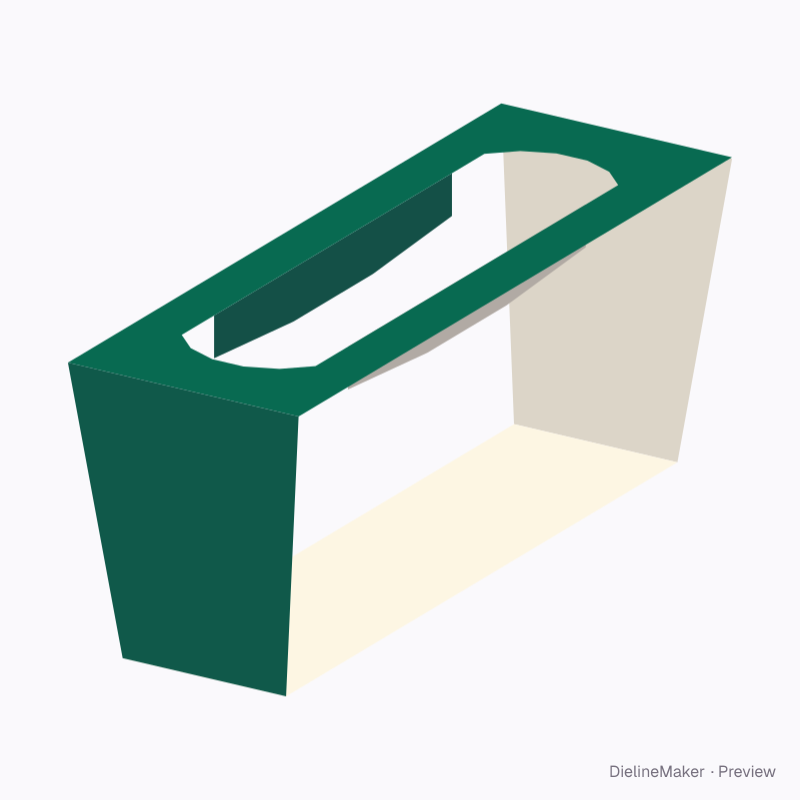

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA E15.20.00.00Carriers
3-cup wrap with recessed handle 80×240×95 dieline
Wraps the row’s length: the leaning walls close the ends and an H-cut handle folds into the top. A ready-sized preset of the cup wrap-around multipack — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside80 × 240 × 95 mm
Outside80 × 241 × 96 mm
Flat blank674.6 × 80 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA E15.20.00.00
- Inside size
- Top length 80 · Top width 240 · Height 95 mm
- Size range
- Top length 60–600 · Top width 50–400 · Height 30–300 mm
- Manufacturing
- 80 × 240.5 × 95.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.047 m² · about 11 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350GD2 350Kraft 350FBB 400SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA E15.20.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Glue lap | 25 × 80 | – × L |
| Top | 240.5 × 80 | W + T × L |
| End wall | 96.2 × 80 | – × L |
| Bottom | 217.2 × 56.7 | – |
| End wall | 95.7 × 56.7 | – |
| Handle flap ×2 | 132 × 17.3 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Construction5 options
- Cups per rowcount
- Wall slope°
- End taper°
The cup wrap-around multipack family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this 3-cup wrap with recessed handle 80×240×95 yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
