ECMA F10.83.00.00Tuck end
Curved-edge cosmetic carton dieline
Square carton with soft lens-creased corners for fragrance or skincare. A ready-sized preset of the curved-edge (broken edge) carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside70 × 70 × 105 mm
Outside71 × 71 × 106 mm
Flat blank293.5 × 244.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA F10.83.00.00
- Inside size
- Length (A) 70 · Width (B) 70 · Height 105 mm
- Size range
- Length (A) 30–300 · Width (B) 30–300 · Height 40–400 mm
- Manufacturing
- 70.5 × 70.5 × 105.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.064 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400GD2 350SBS 300SBS 18 pt
- Good for

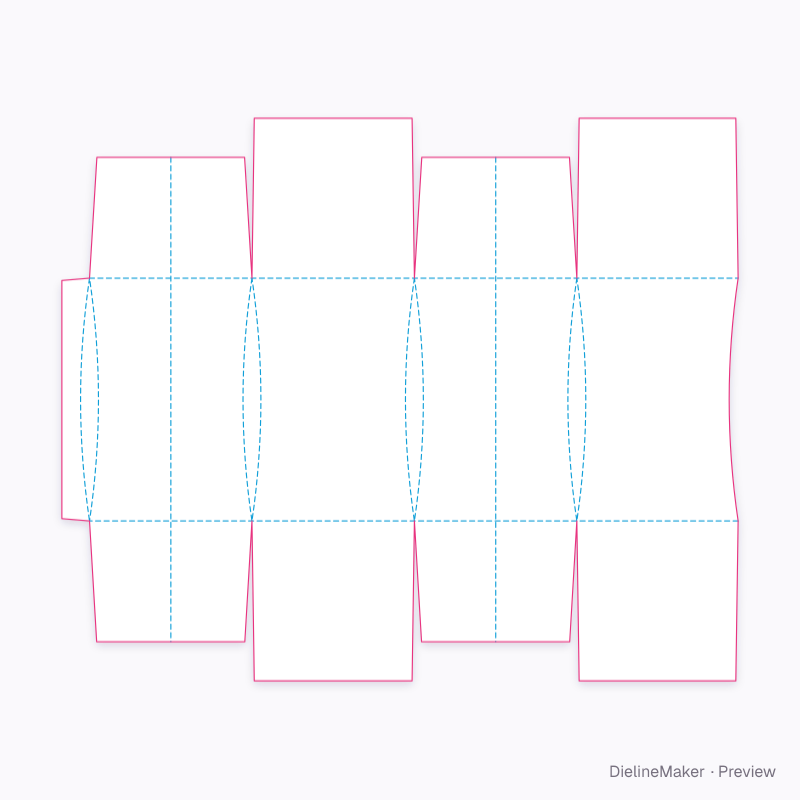

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA F10.83.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Left side (B) | 70.5 × 105.5 | – × H + T |
| Front (A) | 70.5 × 105.5 | – × H + T |
| Right side (B) | 70.5 × 105.5 | – × H + T |
| Back (A) | 70 × 105.5 | – × H + T |
| Glue flap | 12 × 105.5 | – × H + T |
| Top side flap ×2 | 70.5 × 52.5 | – |
| Top end flap | 70.5 × 69.5 | – |
| Top end flap | 70 × 69.5 | – |
| Bottom side flap ×2 | 70.5 × 52.5 | – |
| Bottom end flap | 70.5 × 69.5 | – |
| Bottom end flap | 70 × 69.5 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Lens bulgemm
- Side end flapsmm
