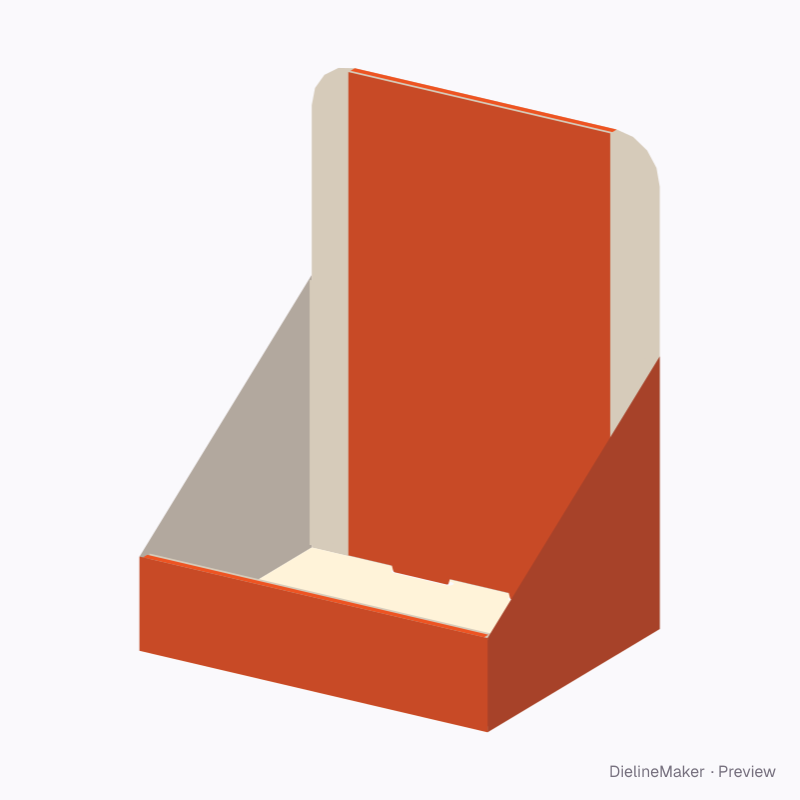

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-DISPLAY-TRAY-01Display
Trading card counter tray — Counter display dieline
Editable 160 × 120 × 115 mm starting point using counter display. Adjust the dimensions to your product before prototyping. A ready-sized preset of the counter display — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside160 × 120 × 115 mm
Outside163.2 × 129.6 × 116.6 mm
Flat blank393.2 × 630 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-DISPLAY-TRAY-01
- Inside size
- Width 160 · Depth 120 · Back height 115 mm
- Size range
- Width 80–800 · Depth 60–600 · Back height 30–400 mm
- Manufacturing
- 161.6 × 128 × 115.8 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.123 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- E-flute WE-flute KB-fluteF-fluteSBS 350FBB 400SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-DISPLAY-TRAY-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 161.6 × 128 | L + T × W + 2·DC + T |
| Front lip | 161.6 × 40 | L + T × lip |
| Front lip roll | 158.4 × 3.2 | L − T × – |
| Front lip (inside) | 158.4 × 40 | L − T × – |
| Back | 161.6 × 207.8 | L + T × H + header |
| Back roll | 121.6 × 3.2 | – |
| Header (front face) | 121.6 × 207.8 | – |
| Left side | 115.8 × 128 | lip → H × W + 2·DC + T |
| Back ear ×2 | 112.6 × 40 | H − 1.5T × – |
| Front ear ×2 | 36.8 × 40 | – |
| Right side | 115.8 × 128 | lip → H × W + 2·DC + T |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Front lipmm
- Headermm
- Header cornersmm
- Lock tonguescount
