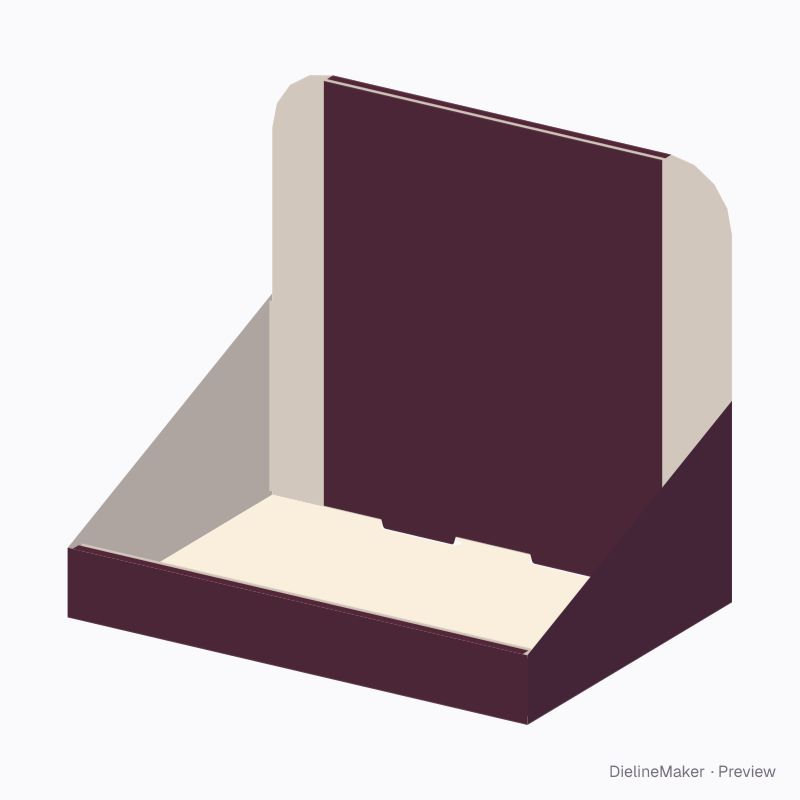

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-DISPLAY-TRAY-01Display
Gum & mints display dieline
Small checkout tray with a tall header card. A ready-sized preset of the counter display — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside150 × 100 × 60 mm
Outside153.2 × 109.6 × 61.6 mm
Flat blank273.2 × 418 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-DISPLAY-TRAY-01
- Inside size
- Width 150 · Depth 100 · Back height 60 mm
- Size range
- Width 80–800 · Depth 60–600 · Back height 30–400 mm
- Manufacturing
- 151.6 × 108 × 60.8 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.069 m² · about 5 up on a 720 × 1020 mm sheet
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- E-flute WE-flute KB-fluteF-fluteSBS 350FBB 400SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-DISPLAY-TRAY-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 151.6 × 108 | L + T × W + 2·DC + T |
| Front lip | 151.6 × 21 | L + T × lip |
| Front lip roll | 148.4 × 3.2 | L − T × – |
| Front lip (inside) | 148.4 × 21 | L − T × – |
| Back | 151.6 × 130.8 | L + T × H + header |
| Back roll | 111.6 × 3.2 | – |
| Header (front face) | 111.6 × 130.8 | – |
| Left side | 60.8 × 108 | lip → H × W + 2·DC + T |
| Back ear ×2 | 57.6 × 21 | H − 1.5T × – |
| Front ear ×2 | 17.8 × 21 | – |
| Right side | 60.8 × 108 | lip → H × W + 2·DC + T |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Front lipmm
- Headermm
- Header cornersmm
- Lock tonguescount
