Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-DISPLAY-TRAY-01Display
Snack bar shelf tray 300×200×120 dieline
Shelf-ready tray with a short header. A ready-sized preset of the counter display — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 200 × 120 mm
Outside303.2 × 209.6 × 121.6 mm
Flat blank543.2 × 656 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-DISPLAY-TRAY-01
- Inside size
- Width 300 · Depth 200 · Back height 120 mm
- Size range
- Width 80–800 · Depth 60–600 · Back height 30–400 mm
- Manufacturing
- 301.6 × 208 × 120.8 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.234 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute WE-flute KB-fluteF-fluteSBS 350FBB 400SBS 18 pt
- Good for

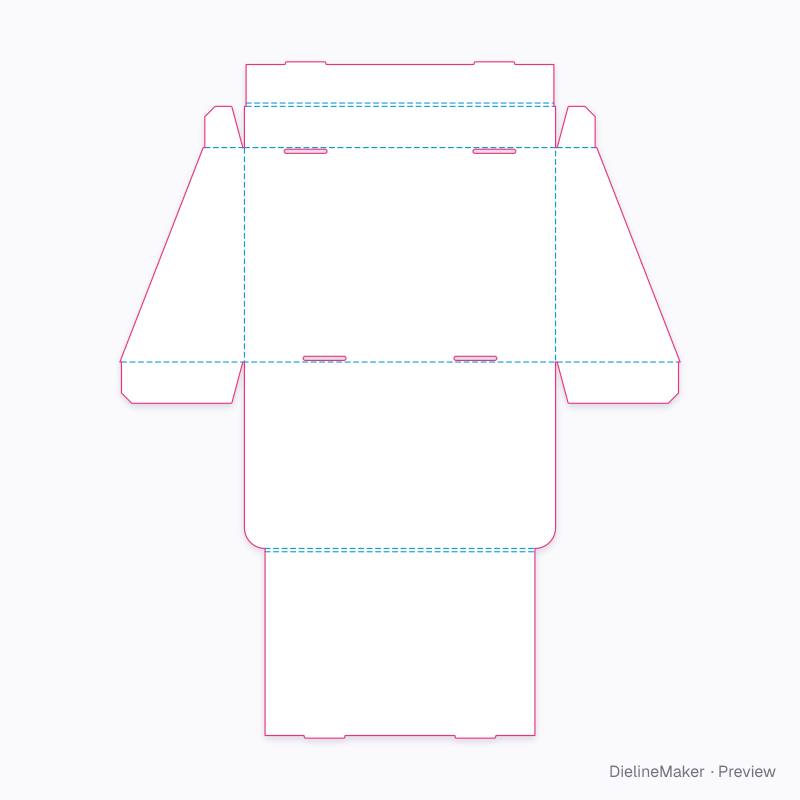

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-DISPLAY-TRAY-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 301.6 × 208 | L + T × W + 2·DC + T |
| Front lip | 301.6 × 40 | L + T × lip |
| Front lip roll | 298.4 × 3.2 | L − T × – |
| Front lip (inside) | 298.4 × 40 | L − T × – |
| Back | 301.6 × 180.8 | L + T × H + header |
| Back roll | 261.6 × 3.2 | – |
| Header (front face) | 261.6 × 180.8 | – |
| Left side | 120.8 × 208 | lip → H × W + 2·DC + T |
| Back ear ×2 | 117.6 × 40 | H − 1.5T × – |
| Front ear ×2 | 36.8 × 40 | – |
| Right side | 120.8 × 208 | lip → H × W + 2·DC + T |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Front lipmm
- Headermm
- Header cornersmm
- Lock tonguescount
