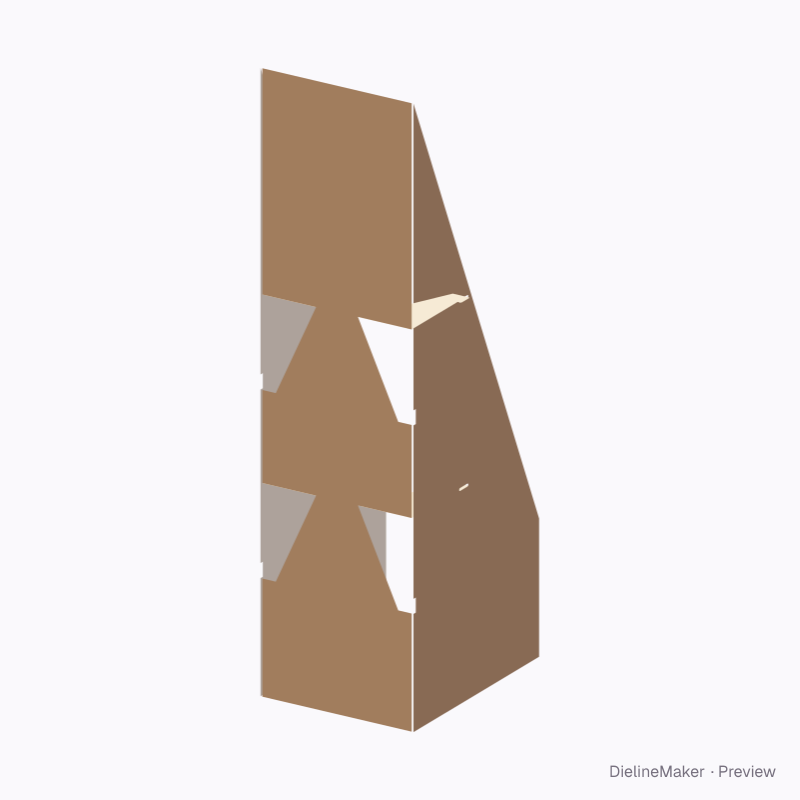

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureDisplay
Floor standee double-wing back support dieline
A 1 metre twin-wing support with two locking levels. Validate board, mounting, load and stability with a physical sample. A ready-sized preset of the double-wing folding back support — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside260 × 350 × 1000 mm
Outside260 × 350 × 1000 mm
Flat blank960 × 1000 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Mounting width 260 · Stand depth 350 · Support height 1000 mm
- Size range
- Mounting width 80–500 · Stand depth 30–600 · Support height 80–1800 mm
- Manufacturing
- 260 × 350 × 1000 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.687 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- E-flute KE-flute WF-fluteB-fluteChipboard 1.2Chipboard 2
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Mounting spine | 260 × 1000 | L × H |
| Left triangular rear wing | 350 × 1000 | W × H |
| Right triangular rear wing | 350 × 1000 | W × H |
| Left locking arm 1 | 93.6 × 152 | – |
| Right locking arm 1 | 93.6 × 152 | – |
| Left locking arm 2 | 93.6 × 152 | – |
| Right locking arm 2 | 93.6 × 152 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Brace reachmm
- Brace height above base (0 = auto)mm
- Locking levelscount
The double-wing folding back support family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this floor standee double-wing back support yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
