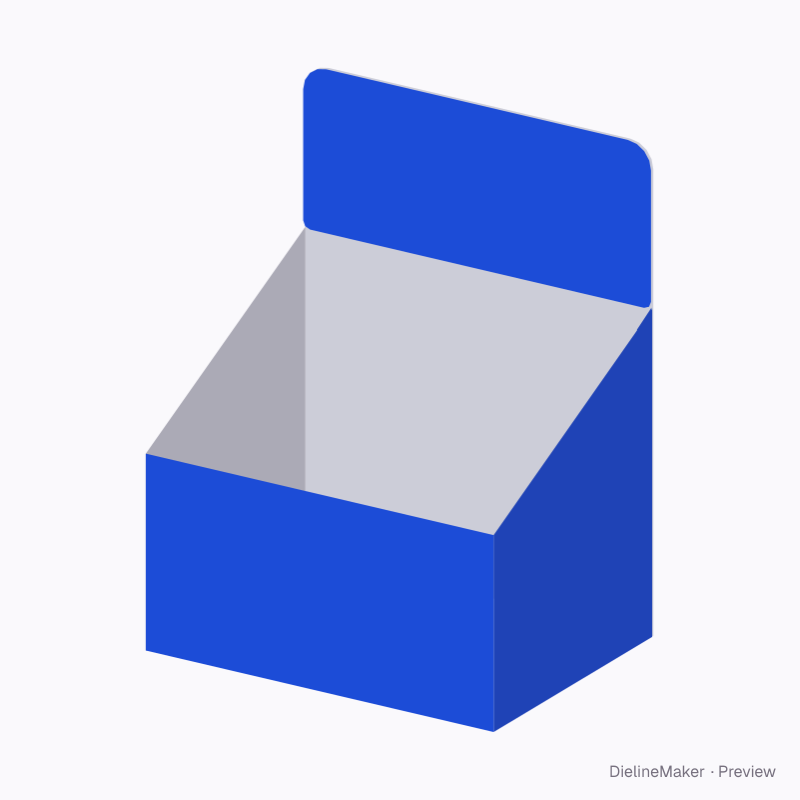

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureDisplay
Counter dump bin dieline
A small E-flute bin by the till for impulse buys. A ready-sized preset of the dump bin — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 220 × 260 mm
Outside303.2 × 223.2 × 260 mm
Flat blank1064.8 × 653.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 300 · Depth 220 · Back height 260 mm
- Size range
- Width 200–1200 · Depth 150–1000 · Back height 150–1200 mm
- Manufacturing
- 301.6 × 221.6 × 260 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.412 m²
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- B-fluteEB doubleE-flute WE-flute K
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Double crease
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 301.6 × 156 | L + T × front |
| Left side | 221.6 × 156 | W + T × H → front |
| Back | 301.6 × 260 | L + T × H + header |
| Right side | 220 × 156 | W × front → H |
| Glue flap | 20 × 260 | – × H |
| Header | 261.6 × 130 | L + T × header |
| Crash-lock flap (back) | 301.6 × 133.8 | L + T × – |
| Glued web | 156.7 × 77.9 | – |
| Bottom side flap | 221.6 × 110 | W + T × – |
| Crash-lock flap (front) | 301.6 × 133.8 | L + T × – |
| Glued web | 77.9 × 156.7 | – |
| Bottom side flap | 220 × 110 | W × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Front heightmm
- Headermm
- Bottom2 options
- Hook reachmm
- Hook notchmm
