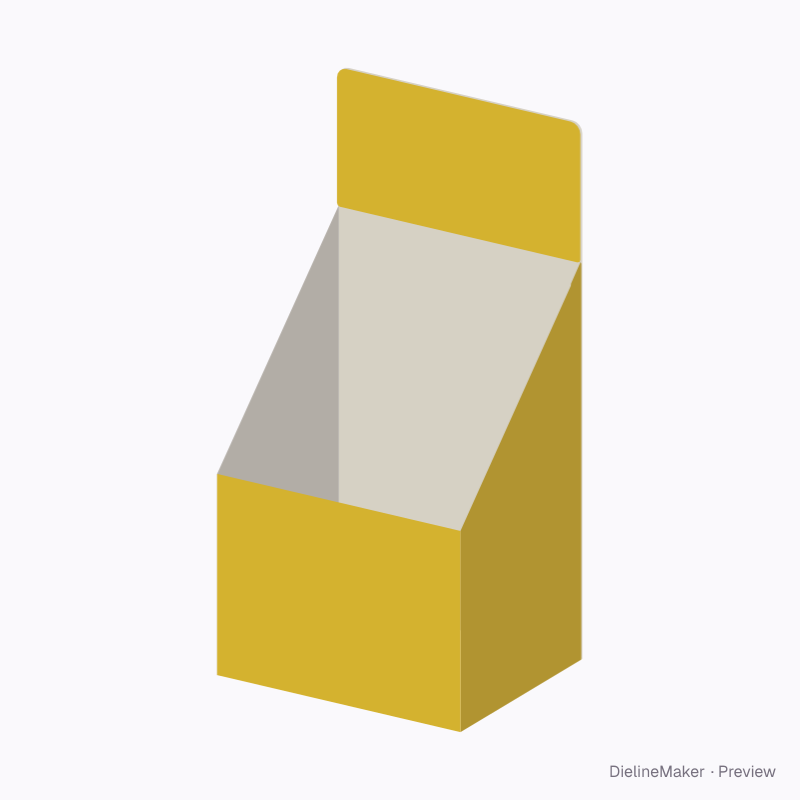

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureDisplay
Toy dump bin dieline
A tall bin for plush toys and balls, low at the front so children can reach in. A ready-sized preset of the dump bin — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside500 × 400 × 750 mm
Outside506.4 × 406.4 × 750 mm
Flat blank1841.6 × 1518.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 500 · Depth 400 · Back height 750 mm
- Size range
- Width 200–1200 · Depth 150–1000 · Back height 150–1200 mm
- Manufacturing
- 503.2 × 403.2 × 750 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 1.660 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute WE-flute K
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Double crease
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 503.2 × 380 | L + T × front |
| Left side | 403.2 × 380 | W + T × H → front |
| Back | 503.2 × 750 | L + T × H + header |
| Right side | 400 × 380 | W × front → H |
| Glue flap | 32 × 750 | – × H |
| Header | 463.2 × 263 | L + T × header |
| Crash-lock flap (back) | 503.2 × 242.6 | L + T × – |
| Glued web ×2 | 142.1 × 285.1 | – |
| Bottom side flap | 403.2 × 200 | W + T × – |
| Crash-lock flap (front) | 503.2 × 242.6 | L + T × – |
| Bottom side flap | 400 × 200 | W × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Front heightmm
- Headermm
- Bottom2 options
- Hook reachmm
- Hook notchmm
