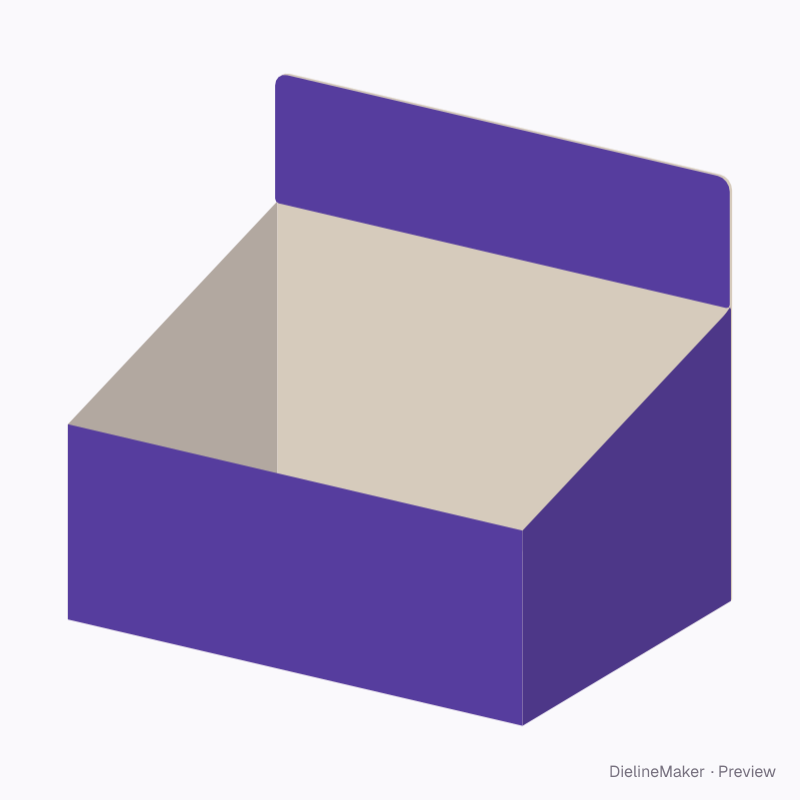

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureDisplay
Bargain bin dieline
A low, wide bin for clearance lines; the bottom is taped flaps for heavy loads. A ready-sized preset of the dump bin — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside760 × 560 × 450 mm
Outside766.4 × 566.4 × 450 mm
Flat blank2681.6 × 1131.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 760 · Depth 560 · Back height 450 mm
- Size range
- Width 200–1200 · Depth 150–1000 · Back height 150–1200 mm
- Manufacturing
- 763.2 × 563.2 × 450 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 2.053 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute WE-flute K
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Double crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 763.2 × 300 | L + T × front |
| Left side | 563.2 × 300 | W + T × H → front |
| Back | 763.2 × 450 | L + T × H + header |
| Right side | 560 × 300 | W × front → H |
| Glue flap | 32 × 450 | – × H |
| Header | 723.2 × 200 | L + T × header |
| Bottom outer flap | 760 × 281.6 | L × – |
| Bottom inner flap ×2 | 556.8 × 281.6 | W − T × – |
| Bottom outer flap | 756.8 × 281.6 | L − T × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Front heightmm
- Headermm
- Bottom2 options
