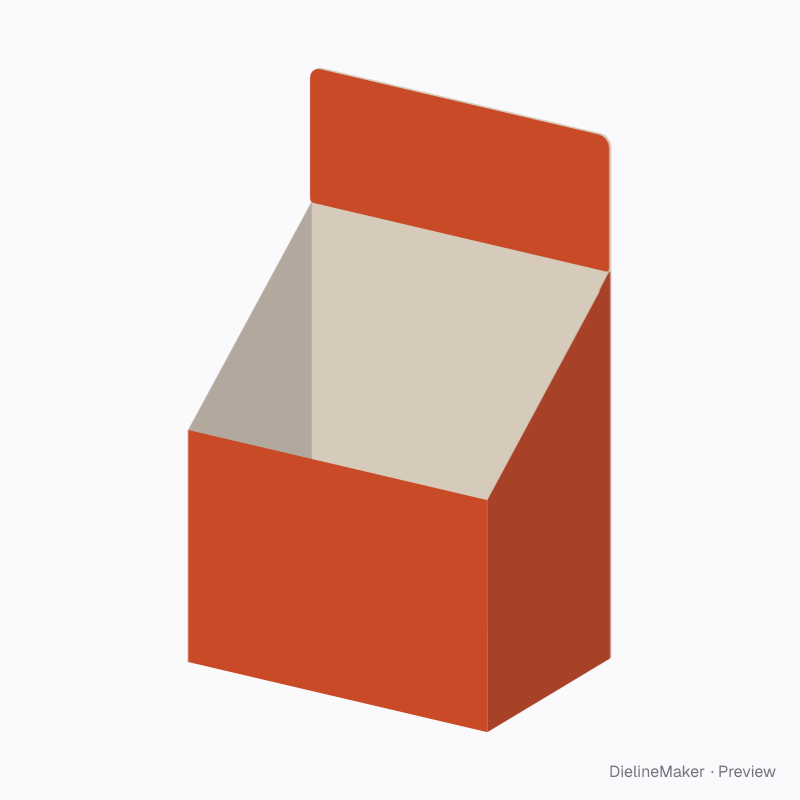

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureDisplay
Quarter pallet dump bin dieline
A 600 × 400 mm footprint bin for a quarter pallet, with a 245 mm header. A ready-sized preset of the dump bin — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside590 × 390 × 700 mm
Outside596.4 × 396.4 × 700 mm
Flat blank2001.6 × 1426.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 590 · Depth 390 · Back height 700 mm
- Size range
- Width 200–1200 · Depth 150–1000 · Back height 150–1200 mm
- Manufacturing
- 593.2 × 393.2 × 700 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 1.793 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute WE-flute K
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Double crease
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 593.2 × 420 | L + T × front |
| Left side | 393.2 × 420 | W + T × H → front |
| Back | 593.2 × 700 | L + T × H + header |
| Right side | 390 × 420 | W × front → H |
| Glue flap | 32 × 700 | – × H |
| Header | 553.2 × 245 | L + T × header |
| Crash-lock flap (back) | 593.2 × 236.6 | L + T × – |
| Glued web | 278 × 138.6 | – |
| Bottom side flap | 393.2 × 195 | W + T × – |
| Crash-lock flap (front) | 593.2 × 236.6 | L + T × – |
| Glued web | 138.6 × 278 | – |
| Bottom side flap | 390 × 195 | W × – |
