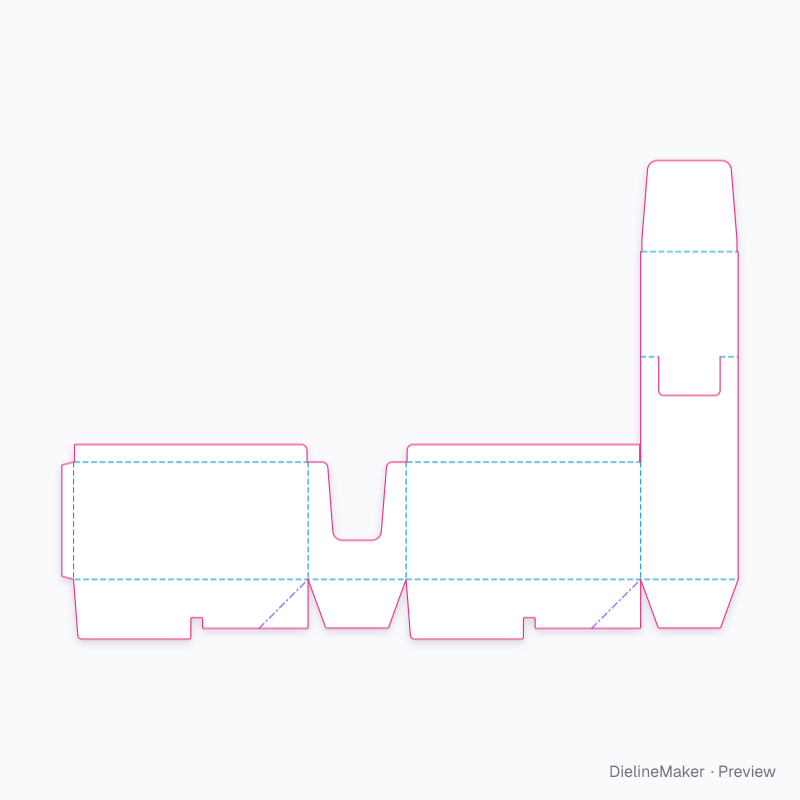

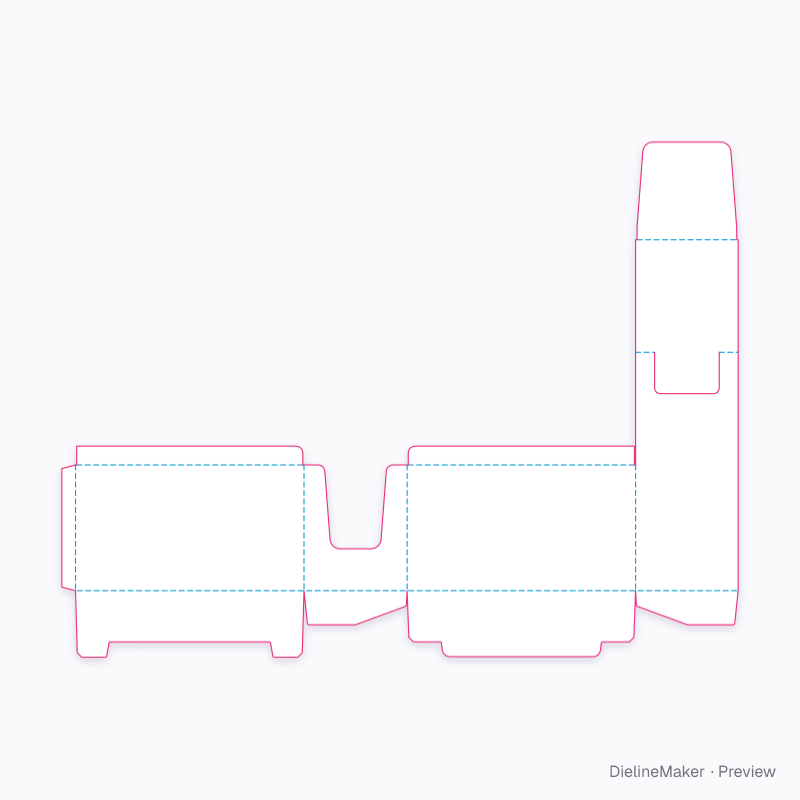

Preview image

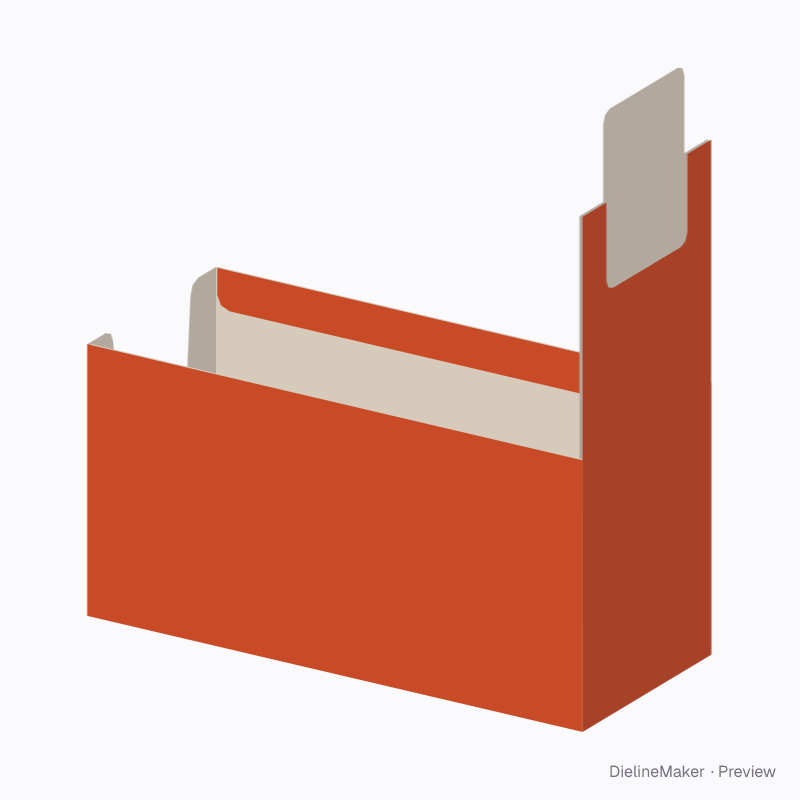

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-DISPLAY-OUTER-CRASH-01Display
Display outer, crash-lock base dieline
The same display with a pre-glued crash-lock base that pops square during packing. A ready-sized preset of the display outer with header — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside240 × 100 × 120 mm
Outside241 × 101 × 121 mm
Flat blank693.5 × 491.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-DISPLAY-OUTER-CRASH-01
- Inside size
- Length 240 · Width 100 · Wall height 120 mm
- Size range
- Length 60–450 · Width 30–250 · Wall height 30–300 mm
- Manufacturing
- 240.5 × 100.5 × 120.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.152 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400GD2 350Kraft 350SBS 300E-flute WF-fluteSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-DISPLAY-OUTER-CRASH-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 240.5 × 120.5 | L + T × H + T |
| Left side | 100.5 × 120.5 | W + T × H + T |
| Back | 240.5 × 120.5 | L + T × H + T |
| Right side | 100 × 120.5 | W × H + T + header |
| Glue flap | 12 × 120.5 | – × H + T |
| Crash-lock flap (back) | 240.5 × 61.3 | L + T × – |
| Glued web ×2 | 71.1 × 35.1 | – |
| Bottom side flap | 100.5 × 50 | W + T × – |
| Crash-lock flap (front) | 240.5 × 61.3 | L + T × – |
| Bottom side flap | 100 × 50 | W × – |
| Rim lip ×2 | 238.5 × 18 | – |
| Header leaf | 18.5 × 108 | – |
| Header tab | 97.5 × 93.6 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Base2 options
- Front U widthmm
- Front U depthmm
- Header leaf heightmm
- Header tab heightmm
