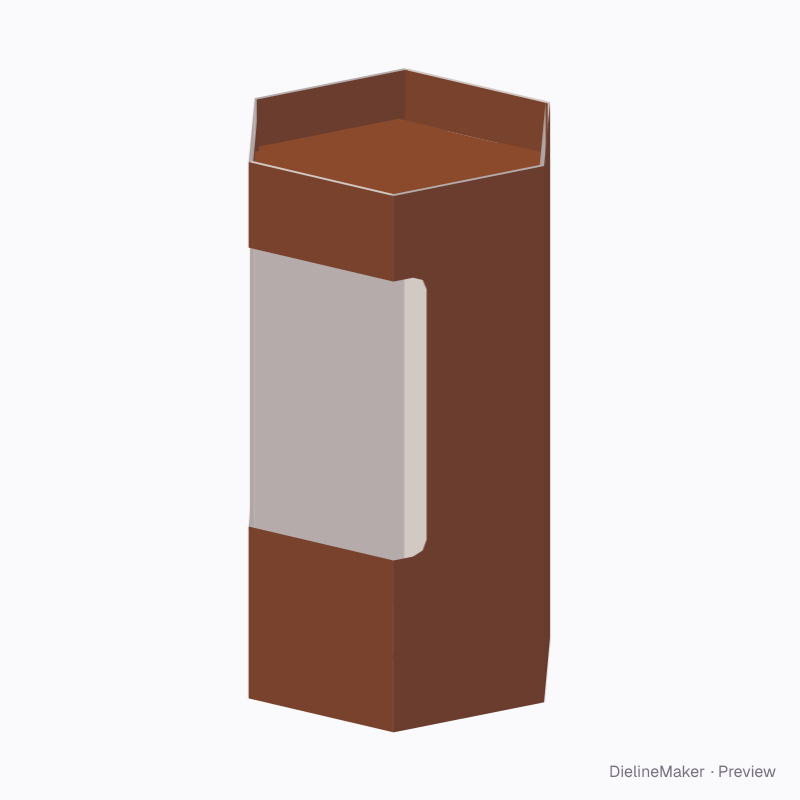

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA F30.52.00.00Shapes
Hexagonal window carton, recessed cover dieline
Hexagonal carton with an automatic bottom, a cover pushed in below the rim and a wrap-round window, for tea, spirits or gifts. A ready-sized preset of the hexagonal carton with recessed cover — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
InsideØ 92 × 140 mm
OutsideØ 93.4 × 157.4 mm
Flat blank312.4 × 305.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA F30.52.00.00
- Inside size
- Across corners 92 · Height 140 mm
- Size range
- Across corners 46–290 · Height 40–400 mm
- Manufacturing
- Ø 92.7 × 156.8 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.077 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- Folding boxboard 400 g · 0.6 mm caliper
- Board options
- SBS 350FBB 400GD2 350Kraft 350Black 350SBS 18 pt
- Good for

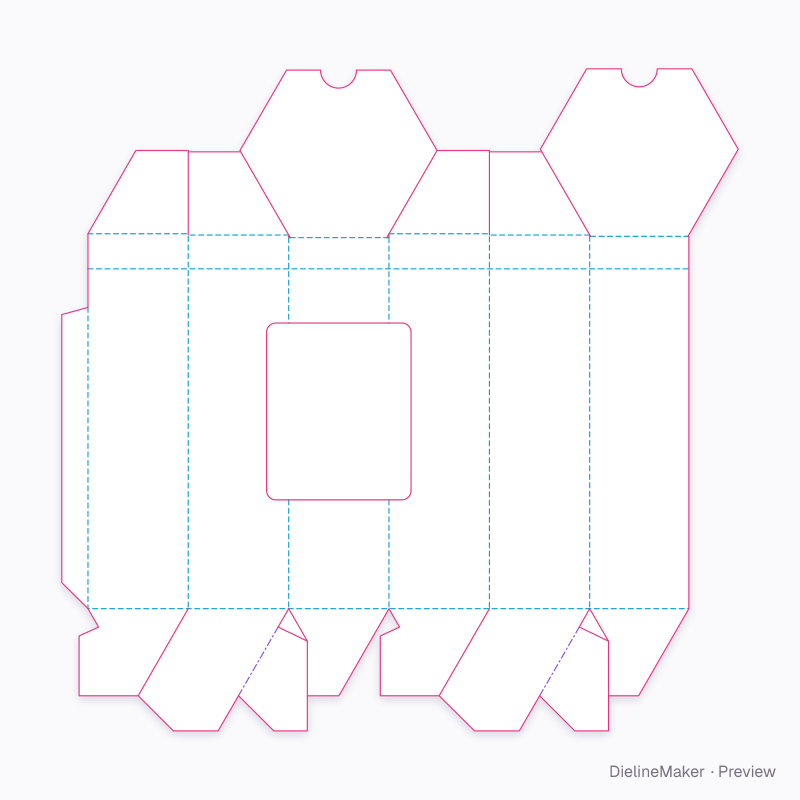

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Cover recessmm
- Windowon / off
- Window heightmm
- Window wrapmm
The hexagonal carton with recessed cover family
The same structure with sizes, boards and options set for a use.
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this hexagonal window carton, recessed cover yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
