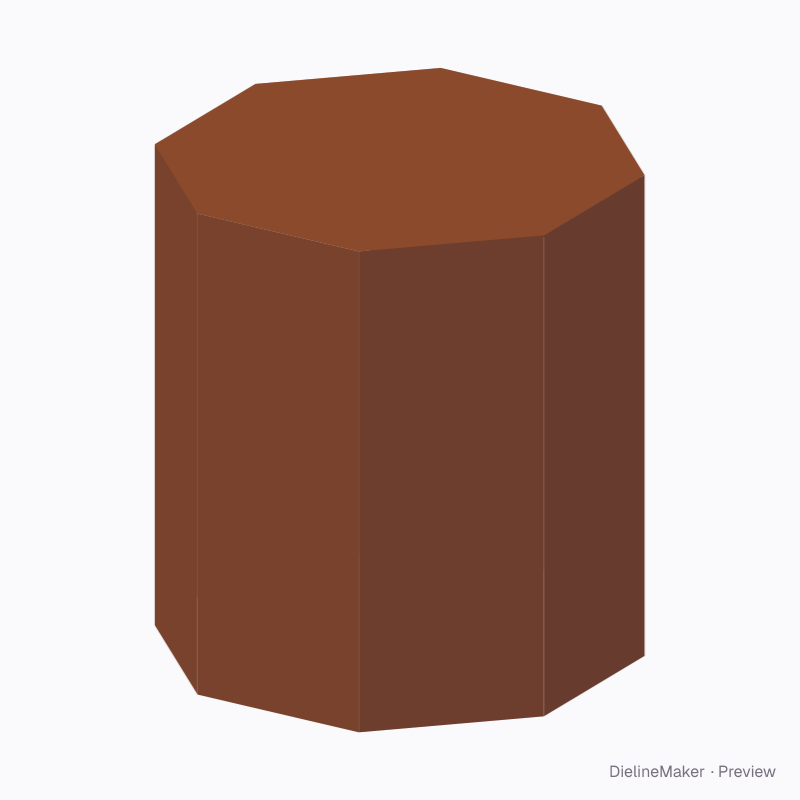

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA C10.50.11.11Shapes
ECMA C10.50.11.11 · Octagonal prism, glued cover ends dieline
Octagonal prism, glued cover ends. A ready-sized preset of the polygonal prism, frustum and pyramid cartons — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside40 × 40 × 110 mm
Outside97.8 × 97.8 × 110.5 mm
Flat blank336 × 306.1 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA C10.50.11.11
- Inside size
- Side A 40 · Side B 40 · Height 110 mm
- Size range
- Side A 15–400 · Side B 15–400 · Height 20–600 mm
- Manufacturing
- 40.5 × 40.5 × 110.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.061 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400Kraft 350E-flute WSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA C10.50.11.11 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Wall 1 | 40.5 × 110.5 | – × H + T |
| Wall 2 | 40.5 × 110.5 | – × H + T |
| Wall 3 | 40.5 × 110.5 | – × H + T |
| Wall 4 | 40.5 × 110.5 | – × H + T |
| Wall 5 | 40.5 × 110.5 | – × H + T |
| Wall 6 | 40.5 × 110.5 | – × H + T |
| Wall 7 | 40.5 × 110.5 | – × H + T |
| Wall 8 | 40.5 × 110.5 | – × H + T |
| Glue flap | 12 × 110.5 | – × H + T |
| Reduced flap ×4 | 22.3 × 22 | – |
| Reduced flap ×6 | 40.5 × 22 | – |
| Reduced flap ×4 | 39.1 × 22 | – |
| Bottom cover | 40.5 × 97.8 | – |
| Top cover | 40.5 × 97.8 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Construction17 options
- Bottom section scale%
- Top section scale%
- Reduced / dust flap depth%
- Tuck depthmm
- Hanging header heightmm
