ECMA C20.40.11.11Shapes
ECMA C20.40.11.11 · Tapered hexagonal tube, glued cover ends dieline
Tapered hexagonal tube, glued cover ends. A ready-sized preset of the polygonal prism, frustum and pyramid cartons — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside55 × 55 × 110 mm
Outside111 × 94.7 × 122 mm
Flat blank314.6 × 266 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA C20.40.11.11
- Inside size
- Side A 55 · Side B 55 · Height 110 mm
- Size range
- Side A 15–400 · Side B 15–400 · Height 20–600 mm
- Manufacturing
- 55.5 × 55.5 × 110.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.048 m² · about 8 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400Kraft 350E-flute WSBS 18 pt
- Good for
The flat dieline

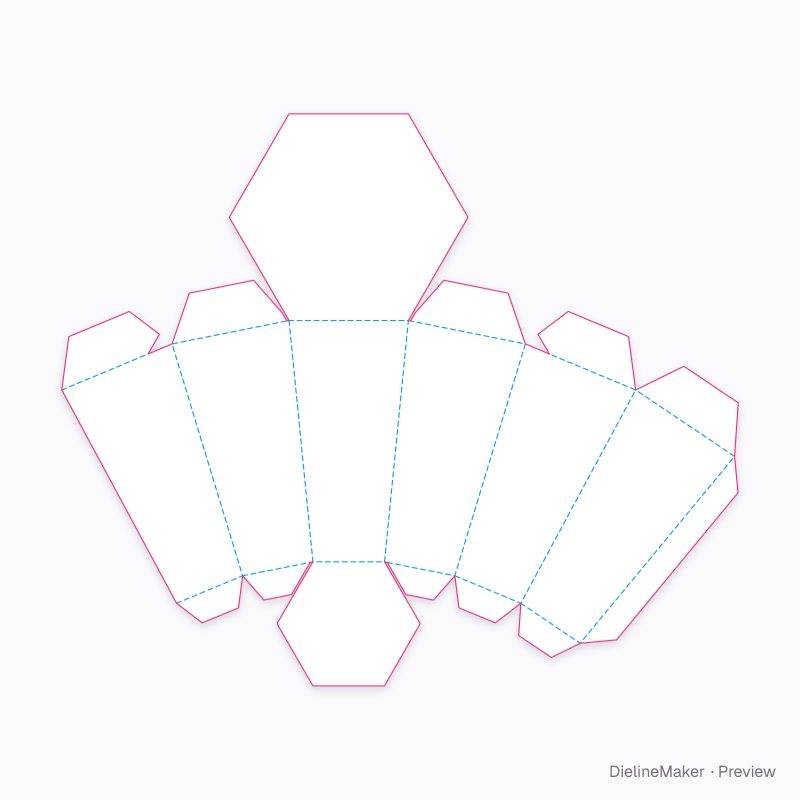

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Construction17 options
