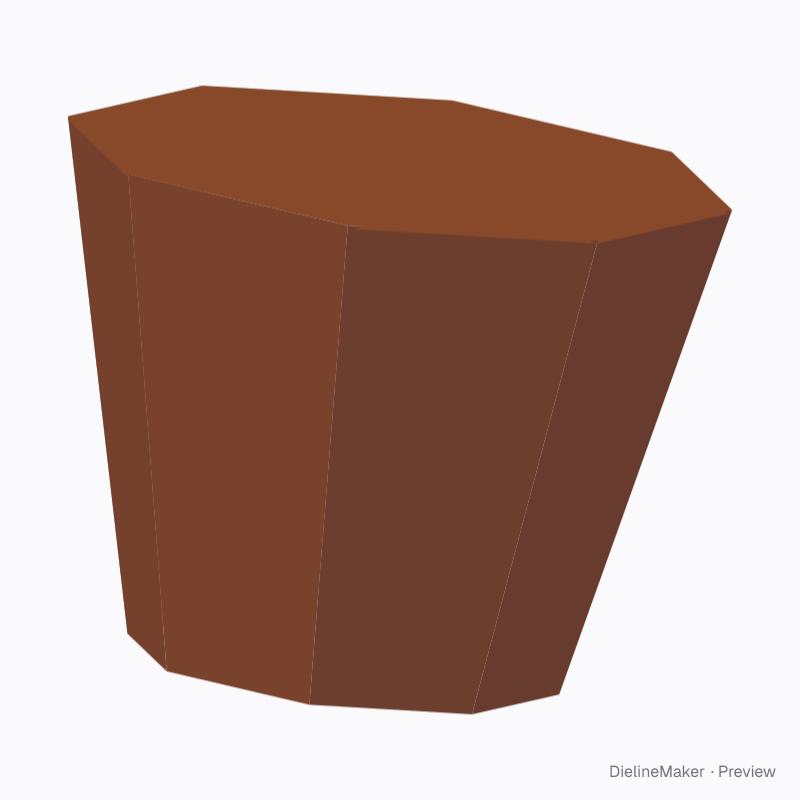

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA C20.50.11.11Shapes
ECMA C20.50.11.11 · Tapered octagonal tube, glued cover ends dieline
Tapered octagonal tube, glued cover ends. A ready-sized preset of the polygonal prism, frustum and pyramid cartons — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside40 × 40 × 80 mm
Outside97.8 × 95.6 × 95.5 mm
Flat blank308.2 × 243.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA C20.50.11.11
- Inside size
- Side A 40 · Side B 40 · Height 80 mm
- Size range
- Side A 15–400 · Side B 15–400 · Height 20–600 mm
- Manufacturing
- 40.5 × 40.5 × 80.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.041 m² · about 9 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400Kraft 350E-flute WSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Construction17 options
- Bottom section scale%
- Top section scale%
- Reduced / dust flap depth%
- Tuck depthmm
- Hanging header heightmm
