The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA C20.20.55.20Shapes
ECMA C20.20.55.20 · Tapered four-sided tube, snap-lock bottom, tuck top dieline
Tapered four-sided tube, snap-lock bottom, tuck top. A ready-sized preset of the polygonal prism, frustum and pyramid cartons — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside80 × 60 × 180 mm
Outside60.5 × 80.3 × 185.8 mm
Flat blank281.9 × 276.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA C20.20.55.20
- Inside size
- Side A 80 · Side B 60 · Height 180 mm
- Size range
- Side A 15–400 · Side B 15–400 · Height 20–600 mm
- Manufacturing
- 80.5 × 60.5 × 180.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.050 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400Kraft 350E-flute WSBS 18 pt
- Good for

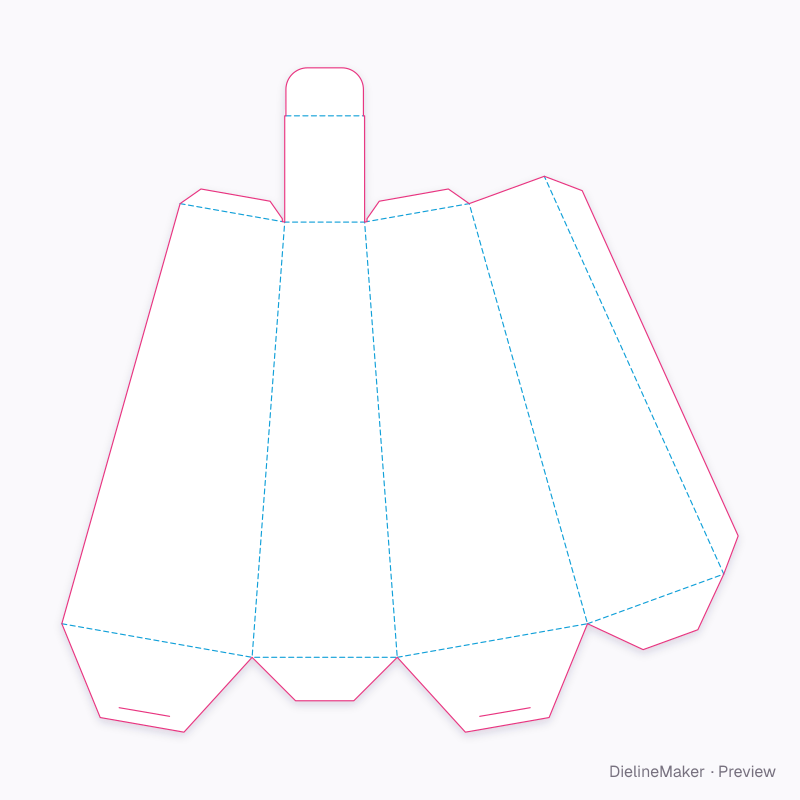

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA C20.20.55.20 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Wall 1 | 80.1 × 181.9 | – |
| Wall 2 | 60.5 × 181.4 | W + T × – |
| Wall 3 | 80.1 × 181.9 | – |
| Wall 4 | 60.3 × 181.9 | – |
| Glue flap | 12 × 181.9 | – |
| Snap-lock major flap | 80.5 × 35.7 | L + T × – |
| Snap-lock major flap | 80.5 × 35.7 | – |
| Snap-lock minor flap ×2 | 60.5 × 18.1 | W + T × – |
| Top lid | 33.3 × 44.3 | – |
| Tuck | 32.3 × 20 | – |
| Dust flap ×2 | 43.3 × 7.5 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Construction17 options
- Bottom section scale%
- Top section scale%
- Reduced / dust flap depth%
- Tuck depthmm
- Hanging header heightmm
The polygonal prism, frustum and pyramid cartons family
The same structure with sizes, boards and options set for a use.
Preset
Preset
PresetECMA C10.40.60.20 · Hexagonal prism, crash-lock bottom, tuck top
ECMA C10.40.60.20
Dieline files on Pro
Preset
Preset
PresetECMA C20.20.60.20 · Tapered four-sided tube, crash-lock bottom, tuck top
ECMA C20.20.60.20
Dieline files on Pro
Preset
Preset
Preset
Preset
PresetECMA C30.20.10.01 · Four-sided pyramid, glued full-overlap base
ECMA C30.20.10.01
Dieline files on Pro
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this ecma c20.20.55.20 · tapered four-sided tube, snap-lock bottom, tuck top yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
