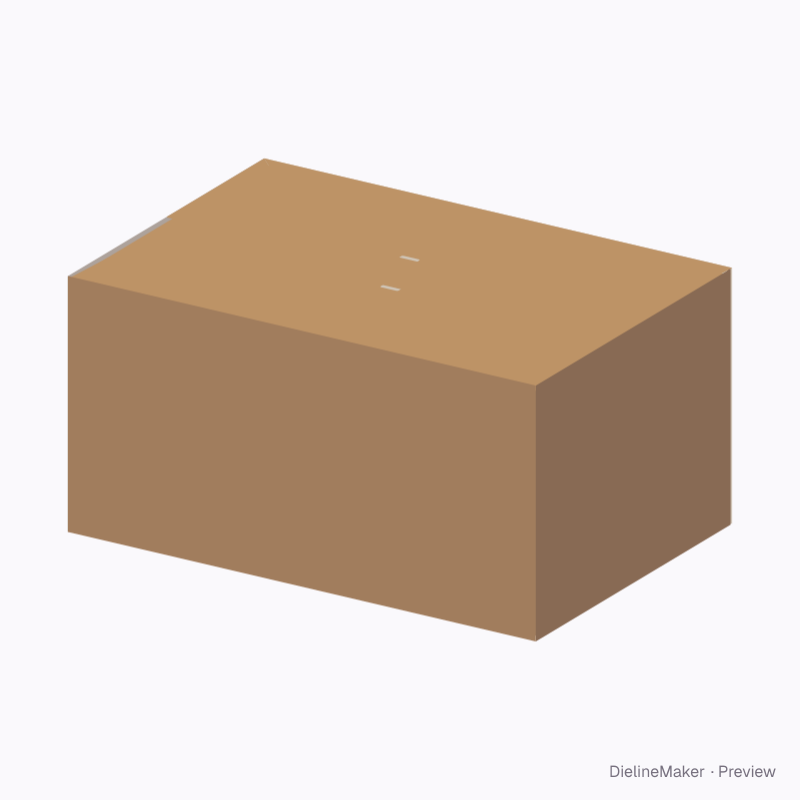

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0714Shipping
FEFCO 0714 · Automatic-bottom telescope dieline
Two fully overlapping crash-bottom tubes. A ready-sized preset of the automatic-bottom telescope case — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 200 × 150 mm
Outside311 × 209.4 × 156.4 mm
Flat blank1052.8 × 280.3 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0714
- Inside size
- Length 300 · Width 200 · Height 150 mm
- Size range
- Length 100–1000 · Width 60–800 · Height 50–900 mm
- Manufacturing
- 301.6 × 201.6 × 151.6 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Body, Cover
- Board area
- 0.521 m²
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- B-fluteEB doubleE-flute KE-flute WF-flute
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0714 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| FrontBody | 301.6 × 151.6 | L + T × H + T |
| Left sideBody | 201.6 × 151.6 | W + T × H + T |
| BackBody | 301.6 × 151.6 | L + T × H + T |
| Right sideBody | 200 × 151.6 | W × H + T |
| Glue flapBody | 20 × 151.6 | – × H + T |
| Crash-lock flap (back)Body | 301.6 × 121.8 | L + T × – |
| Glued webBody | 142.6 × 70.9 | – |
| Bottom side flapBody | 201.6 × 100 | W + T × – |
| Crash-lock flap (front)Body | 301.6 × 121.8 | L + T × – |
| Glued webBody | 70.9 × 142.6 | – |
| Bottom side flapBody | 200 × 100 | W × – |
| Pose rigCover | 100 × 184.8 | – |
| FrontCover | 100 × 184.8 | – |
| Left sideCover | 207.8 × 154.8 | – |
| BackCover | 309.4 × 154.8 | – |
| Right sideCover | 206.2 × 154.8 | – |
6 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Hook reachmm
- Hook notchmm
