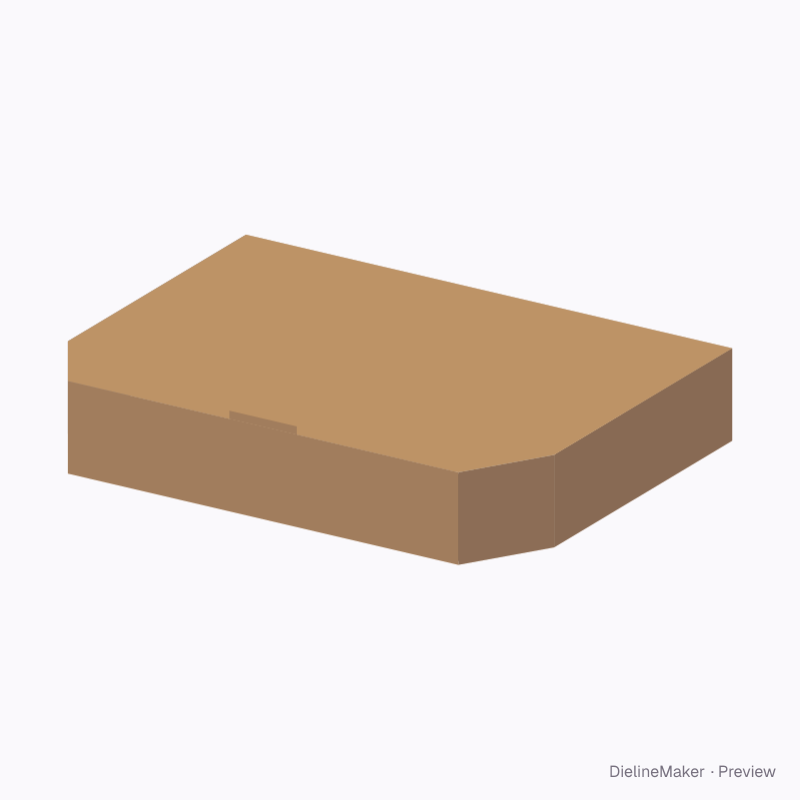

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0463Trays & lids
Cut-corner presentation box dieline
Source-specific cut-corner constructions with glued corner faces or integral hinged covers and retaining flaps. A ready-sized preset of the cut-corner hinged box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside320 × 240 × 55 mm
Outside326.4 × 243.2 × 58.2 mm
Flat blank438 × 632.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0463
- Inside size
- Length 320 · Width 240 · Height 55 mm
- Size range
- Length 120–900 · Width 100–650 · Height 20–180 mm
- Manufacturing
- 324.8 × 241.6 × 56.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.247 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KE-flute WB-fluteSBS 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0463 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Six-sided floor | 324.8 × 241.6 | – × W + T |
| n | 260.8 × 56.6 | – × H + T |
| e | 56.6 × 190.4 | H + T × – |
| s | 324.8 × 56.6 | – × H + T |
| w | 56.6 × 190.4 | H + T × – |
| e front corner | 56.6 × 60.4 | H + T × – |
| e back ear | 53.4 × 56.6 | H − T × H + T |
| w front corner | 56.6 × 60.4 | H + T × – |
| w back ear | 53.4 × 56.6 | H − T × H + T |
| front start ear | 30.4 × 53.4 | – × H − T |
| front end ear | 30.4 × 53.4 | – × H − T |
| front lip | 257.6 × 18 | – |
| front retained catch | 45 × 5 | – |
| Cut-corner lid | 324.8 × 241.6 | – × W + T |
| lid e ear | 48.1 × 187.2 | – |
| lid w ear | 48.1 × 187.2 | – |
1 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Construction2 options
- Corner setbackmm
The cut-corner hinged box family
The same structure with sizes, boards and options set for a use.
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this cut-corner presentation box yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
