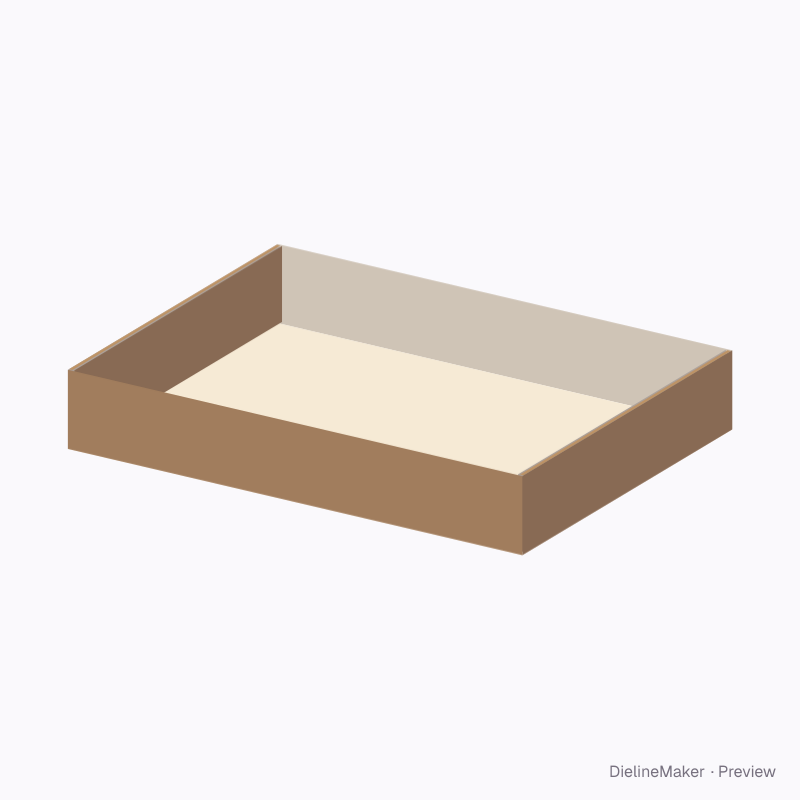

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0454Trays & lids
Friction tray with rolled short ends dieline
Open trays with construction-specific wall returns, floor tongues, inward rims and corner locks. A ready-sized preset of the standard locking and rimmed tray — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside400 × 300 × 65 mm
Outside409.6 × 303.2 × 66.6 mm
Flat blank669.2 × 431.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0454
- Inside size
- Length 400 · Width 300 · Height 65 mm
- Size range
- Length 120–1200 · Width 100–900 · Height 20–200 mm
- Manufacturing
- 408 × 301.6 × 65 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.271 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KE-flute WB-fluteSBS 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0454 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Floor | 408 × 301.6 | – × W + T |
| e wall | 65 × 301.6 | H × W + T |
| e wall roll | 3.2 × 298.4 | – × W − T |
| e wall (inside) | 62.4 × 298.4 | – × W − T |
| w wall | 65 × 301.6 | H × W + T |
| w wall roll | 3.2 × 298.4 | – × W − T |
| w wall (inside) | 62.4 × 298.4 | – × W − T |
| n | 408 × 65 | – × H |
| Trapped corner flap ×4 | 65 × 61.8 | H × H − 2T |
| s | 408 × 65 | – × H |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Construction15 options
- Rim / return depthmm
