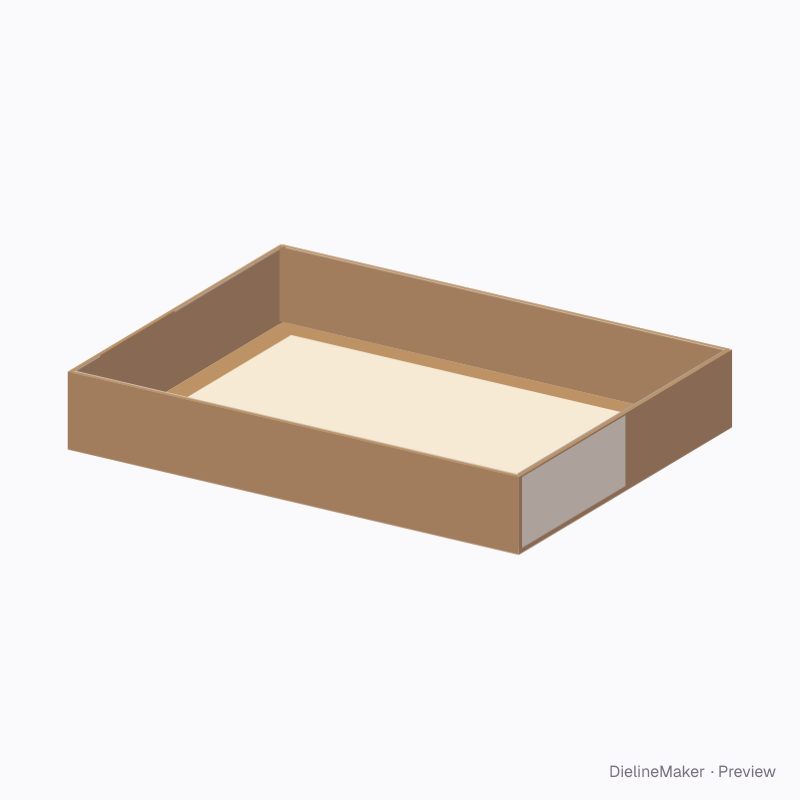

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0439Trays & lids
Web-corner tray with hooked wall returns dieline
Open trays with construction-specific wall returns, floor tongues, inward rims and corner locks. A ready-sized preset of the standard locking and rimmed tray — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside400 × 300 × 65 mm
Outside412.8 × 312.8 × 66.6 mm
Flat blank711.4 × 611.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0439
- Inside size
- Length 400 · Width 300 · Height 65 mm
- Size range
- Length 120–1200 · Width 100–900 · Height 20–200 mm
- Manufacturing
- 411.2 × 311.2 × 65 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.393 m²
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KE-flute WB-fluteSBS 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0439 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Floor | 411.2 × 311.2 | – |
| e wall | 65 × 311.2 | H × – |
| e wall roll | 3.2 × 308 | – |
| e wall (inside) | 62.4 × 308 | – |
| e foot | 19.5 × 304.8 | – |
| w wall | 65 × 311.2 | H × – |
| w wall roll | 3.2 × 308 | – |
| w wall (inside) | 62.4 × 308 | – |
| w foot | 19.5 × 304.8 | – |
| n wall | 411.2 × 65 | – × H |
| n wall roll | 408 × 3.2 | – |
| n wall (inside) | 408 × 62.4 | – |
| n foot | 404.8 × 19.5 | – |
| n start hook ear | 150.8 × 59.2 | – |
| n end hook ear | 150.8 × 59.2 | – |
| s wall | 411.2 × 65 | – × H |
7 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Construction15 options
- Rim / return depthmm
The standard locking and rimmed tray family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this web-corner tray with hooked wall returns yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
