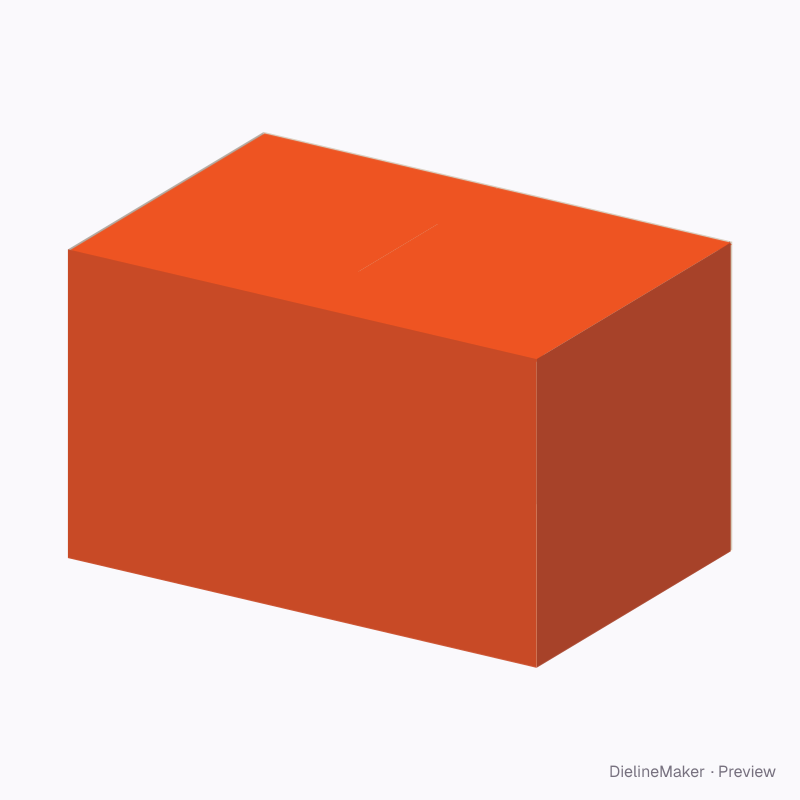

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0728Display
FEFCO 0728 · Shelf display dieline
One-piece tear-open crash-bottom display. A ready-sized preset of the ready-glued shelf display — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 200 × 180 mm
Outside303.2 × 203.2 × 183.2 mm
Flat blank1024.8 × 633.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0728
- Inside size
- Length 300 · Width 200 · Shipping height 180 mm
- Size range
- Length 120–1000 · Width 70–700 · Shipping height 50–600 mm
- Manufacturing
- 301.6 × 201.6 × 181.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.381 m²
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- B-fluteEB doubleE-flute KE-flute WF-flute
- Good for

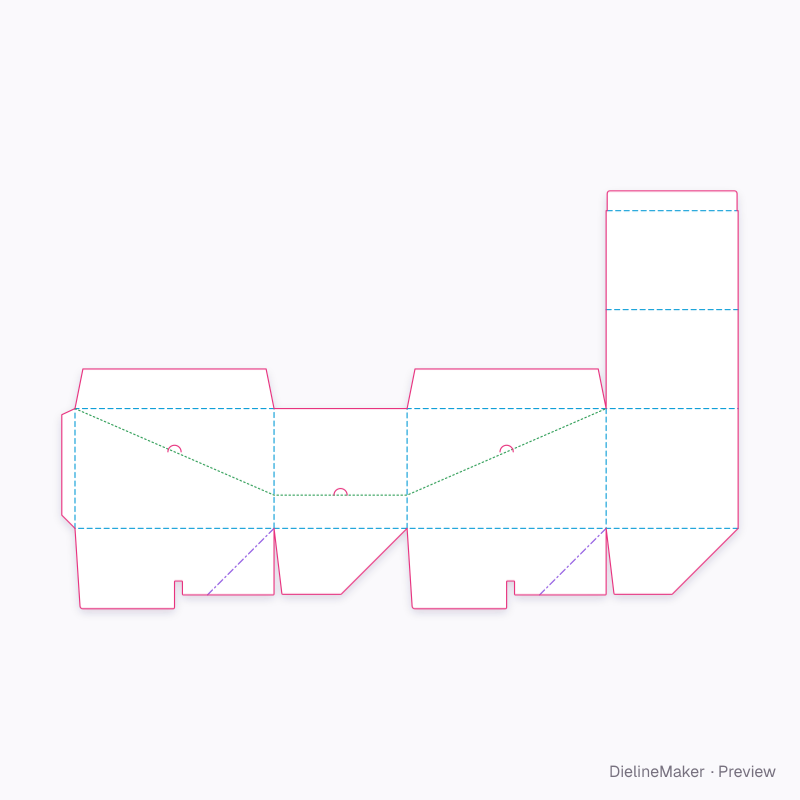

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Perforation
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0728 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 301.6 × 181.6 | L + T × H + T |
| Left side | 201.6 × 181.6 | W + T × H + T |
| Back | 301.6 × 181.6 | L + T × H + T |
| Right side | 200 × 181.6 | W × H + T |
| Glue flap | 20 × 181.6 | – × H + T |
| Crash-lock flap (back) | 301.6 × 121.8 | L + T × – |
| Glued web | 142.6 × 70.9 | – |
| Bottom side flap | 201.6 × 100 | W + T × – |
| Crash-lock flap (front) | 301.6 × 121.8 | L + T × – |
| Glued web | 70.9 × 142.6 | – |
| Bottom side flap | 200 × 100 | W × – |
| Top dust flap ×2 | 301.6 × 60 | L + T × – |
| Rear half of cover | 200 × 150 | W × – |
| Front half of cover | 200 × 150 | W × – |
| Cover tuck | 196.8 × 30 | W − 2T × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Construction4 options
- Display lip heightmm
- Release feature widthmm
- Cover tuck depthmm
- Hook reachmm
- Hook notchmm
