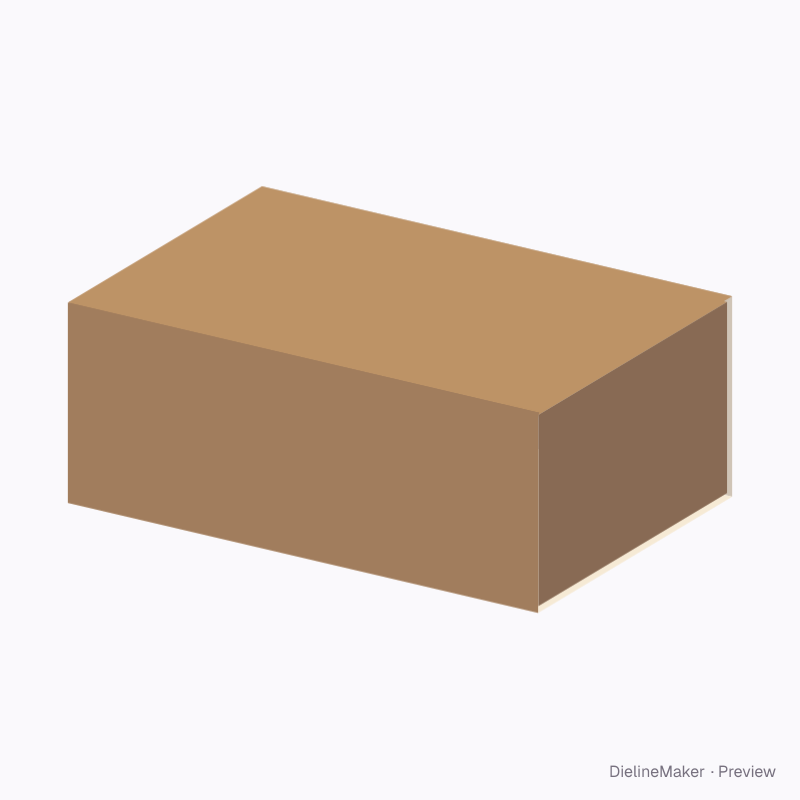

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0509Shipping
Sleeve with split-cover 0907 liner dieline
Source-specific sleeve and rigid-box constructions with separate printable blanks, specified opening directions and board allowances. A ready-sized preset of the slide box with inner wrap — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside400 × 260 × 150 mm
Outside407.4 × 270.6 × 160.6 mm
Flat blank407.4 × 881 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0509
- Inside size
- Length 400 · Width 260 · Height 150 mm
- Size range
- Length 120–1000 · Width 80–700 · Height 40–500 mm
- Manufacturing
- 401.6 × 261.6 × 151.6 mm score to score · inside vs outside sizes
- Parts
- 2 parts — 0907 liner, outer sleeve
- Board area
- 0.648 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KE-flute WB-fluteSBS 350SBS 18 pt
- Good for

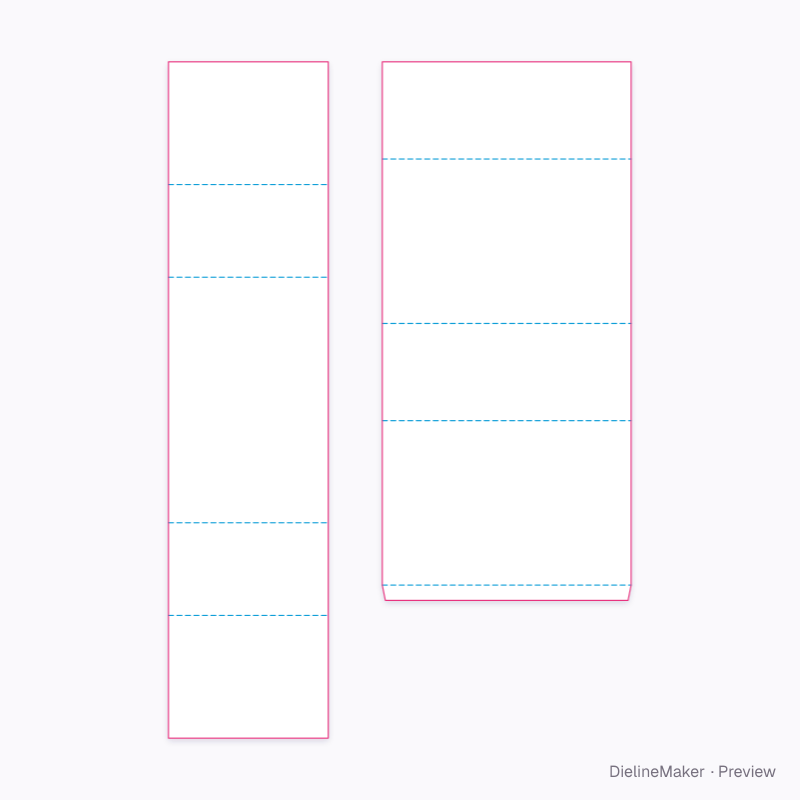

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0509 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Bottom0907 liner | 261.6 × 401.6 | W + T × L + T |
| Right0907 liner | 261.6 × 151.6 | W + T × H + T |
| Left0907 liner | 261.6 × 151.6 | W + T × H + T |
| Top ×20907 liner | 261.6 × 200.8 | W + T × – |
| Pose rigouter sleeve | 325.9 × 100 | – |
| Bottomouter sleeve | 733.3 × 100 | – |
| Frontouter sleeve | 407.4 × 159 | – |
| Backouter sleeve | 407.4 × 159 | – |
| Topouter sleeve | 407.4 × 269 | – |
| seam glueouter sleeve | 407.4 × 25 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Construction4 options
- Glue or tuck depthmm
- Sleeve clearancemm
