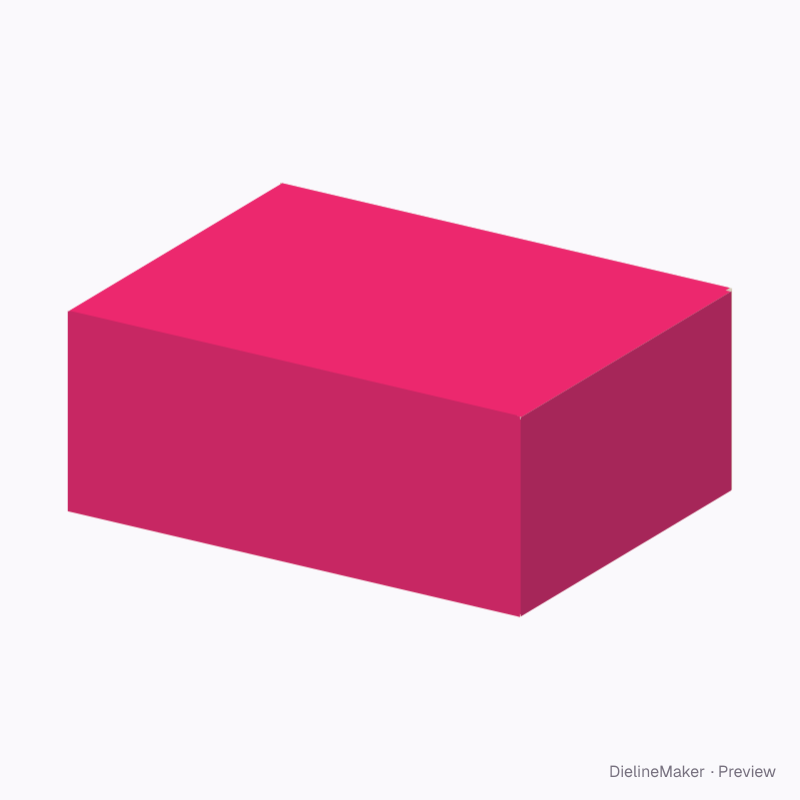

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-FULL-WRAP-01Mailer
Fully wrapped mailer box dieline
200 × 150 × 80 mm box: corner tabs, side flaps, inner cover and an outer cover lapped down the front with a finger tongue. A ready-sized preset of the fully wrapped mailer — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside200 × 150 × 80 mm
Outside201 × 152 × 82.5 mm
Flat blank483.6 × 561 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-FULL-WRAP-01
- Inside size
- Length 200 · Width 150 · Depth 80 mm
- Size range
- Length 60–600 · Width 40–450 · Depth 3–150 mm
- Manufacturing
- 201 × 151 × 81.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.162 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350GD2 350SBS 300E-flute KF-fluteSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-FULL-WRAP-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 201 × 151 | L + 2T × W + 2T |
| Left | 81 × 150 | H + 2T × W |
| Side flap ×2 | 60.3 × 149 | – × W − 2T |
| Right | 81 × 150 | H + 2T × W |
| Corner tab ×4 | 79.5 × 30 | H − T × – |
| Front | 201 × 81.5 | L + 2T × – |
| Back | 201 × 82 | L + 2T × – |
| Inner cover | 199 × 62 | L − 2T × – |
| Outer cover | 199 × 151.5 | L − 2T × – |
| Closing lap | 199 × 33 | L − 2T × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 8 options; the template and 3D preview follow each change.
- Closing lapmm
- Finger tongueon / off
- Tear stripon / off
- Inner cover depthmm
- Tapered inner coveron / off
- Outer cover depthmm
- Outer cover cornersmm
- Side flap depthmm
