The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureShapes
Four-sided diamond favour dieline

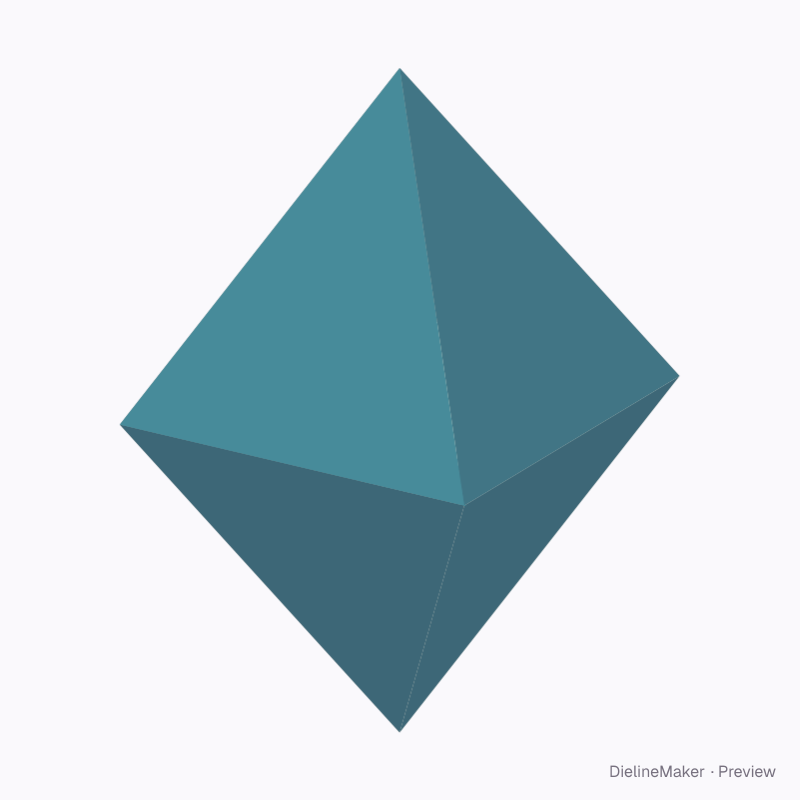

Two pointed polygonal shells meet at a shared waist to form a gemstone. Each half is a real triangle-fan net with a side seam; lower waist tabs bond the shells, leaving one tuck tab unglued for access. Three- to twenty-sided variants are supported. A ready-sized preset of the double-pyramid gemstone box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
InsideØ 80 × 100 mm
OutsideØ 81 × 101 mm
Flat blank98.4 × 136.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Waist diameter 80 · Tip-to-tip height 100 mm
- Size range
- Waist diameter 60–250 · Tip-to-tip height 80–300 mm
- Manufacturing
- Ø 80.5 × 100.5 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Upper gemstone half, Lower gemstone half
- Board area
- 0.016 m² · about 56 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350Black 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
