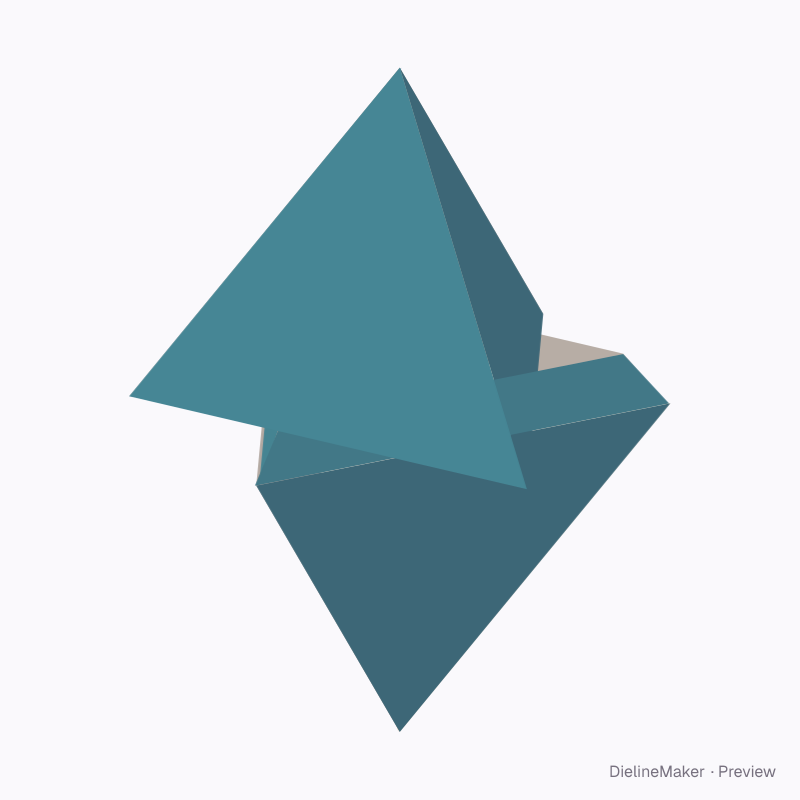

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureShapes
Three-sided crystal favour dieline
Two pointed polygonal shells meet at a shared waist to form a gemstone. Each half is a real triangle-fan net with a side seam; lower waist tabs bond the shells, leaving one tuck tab unglued for access. Three- to twenty-sided variants are supported. A ready-sized preset of the double-pyramid gemstone box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
InsideØ 90 × 120 mm
OutsideØ 91 × 121 mm
Flat blank119.5 × 143 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Waist diameter 90 · Tip-to-tip height 120 mm
- Size range
- Waist diameter 60–250 · Tip-to-tip height 80–300 mm
- Manufacturing
- Ø 90.5 × 120.5 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Upper gemstone half, Lower gemstone half
- Board area
- 0.018 m² · about 48 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350Black 350SBS 18 pt
- Good for

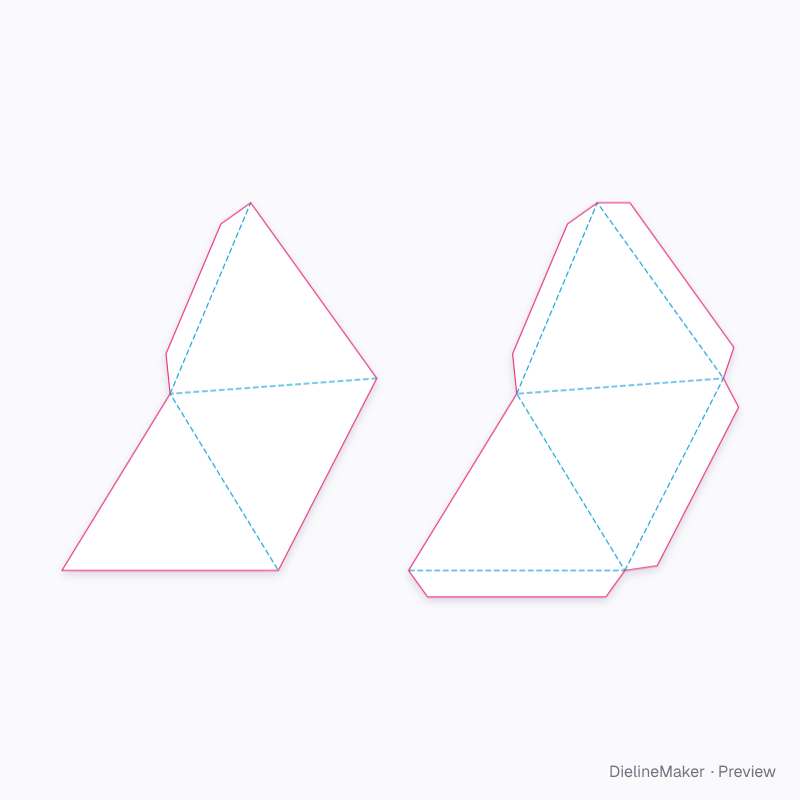

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Waist sides18 options

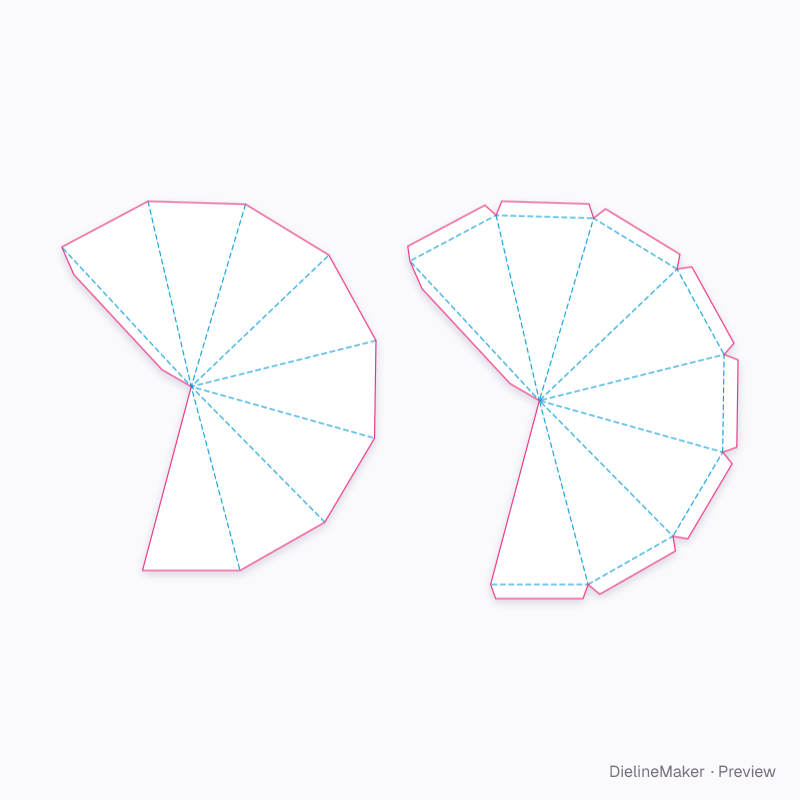

The double-pyramid gemstone box family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this three-sided crystal favour yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
