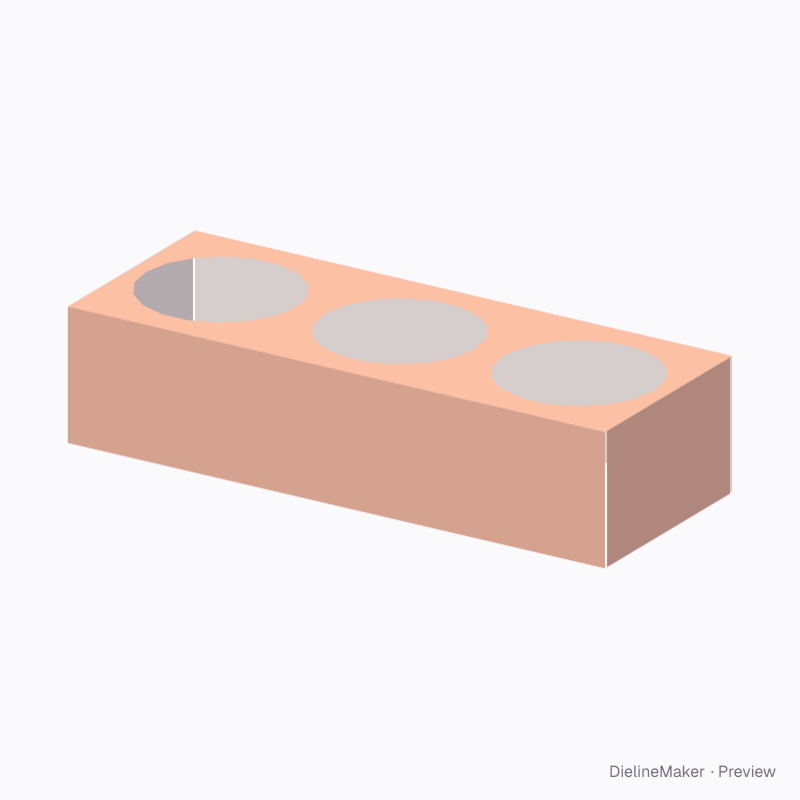

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-INSERT-TRAYTrays & lids
Three-bottle die-cut platform dieline
A standing platform with three round die-cut openings that hold bottle bases in a row. A ready-sized preset of the insert tray — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside260 × 100 × 60 mm
Outside260 × 100 × 60 mm
Flat blank377.6 × 238 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-INSERT-TRAY
- Inside size
- Box inside length 260 · Box inside width 100 · Insert height 60 mm
- Size range
- Box inside length 40–500 · Box inside width 40–400 · Insert height 10–150 mm
- Manufacturing
- 260 × 100 × 60 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.072 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- SBS 350Kraft 350FBB 400Black 350SBS 300GD2 350F-fluteE-flute WE-flute KSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-INSERT-TRAY blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Insert platform | 257.6 × 97.6 | L − 2·fit × W − 2·fit |
| Back leg | 257.6 × 60 | – × insert height |
| Back foot | 257.6 × 10.2 | – |
| Front leg | 257.6 × 60 | – × insert height |
| Front foot | 257.6 × 10.2 | – |
| Left leg | 60 × 94.4 | – × insert height |
| Right leg | 60 × 94.4 | – × insert height |
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Cavity shape3 options
- Radial grip fingerson / off
- Hole diametermm
- Columnscount
- Rowscount
- Food contacton / off
The insert tray family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this three-bottle die-cut platform yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
