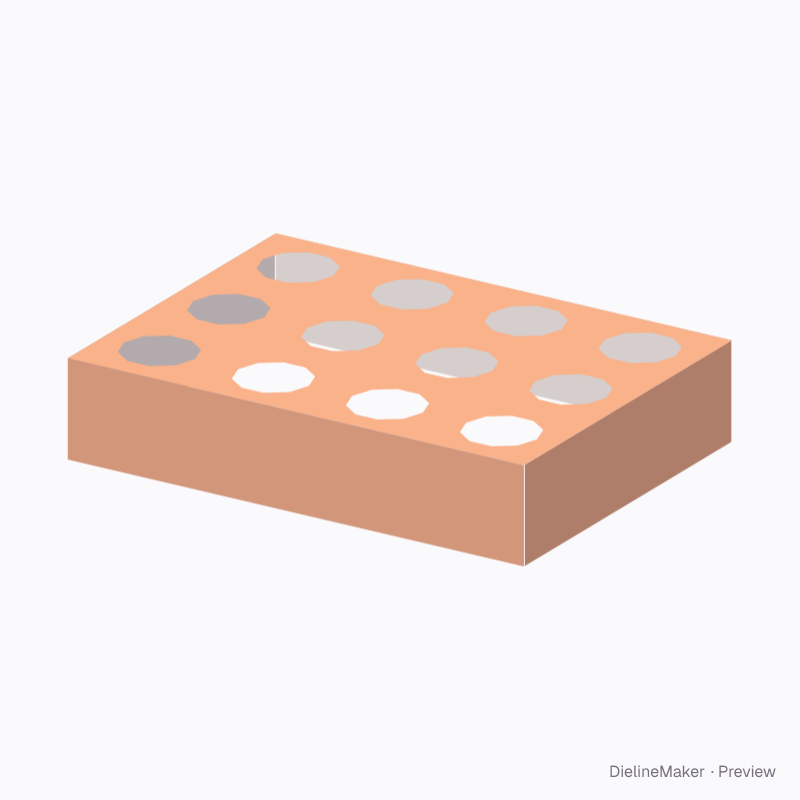

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-INSERT-TRAYTrays & lids
Vial insert, 12 vials dieline
Twelve 10 ml serum or sample vials in a 4 × 3 grid. A ready-sized preset of the insert tray — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside150 × 110 × 30 mm
Outside150 × 110 × 30 mm
Flat blank208 × 168 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-INSERT-TRAY
- Inside size
- Box inside length 150 · Box inside width 110 · Insert height 30 mm
- Size range
- Box inside length 40–500 · Box inside width 40–400 · Insert height 10–150 mm
- Manufacturing
- 150 × 110 × 30 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.031 m² · about 15 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350Kraft 350FBB 400Black 350SBS 300GD2 350F-fluteE-flute WE-flute KSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-INSERT-TRAY blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Insert platform | 148 × 108 | L − 2·fit × W − 2·fit |
| Back leg | 148 × 30 | – × insert height |
| Front leg | 148 × 30 | – × insert height |
| Left leg | 30 × 107 | – × insert height |
| Right leg | 30 × 107 | – × insert height |
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Cavity shape3 options
- Radial grip fingerson / off
- Hole diametermm
- Columnscount
- Rowscount
- Food contacton / off
