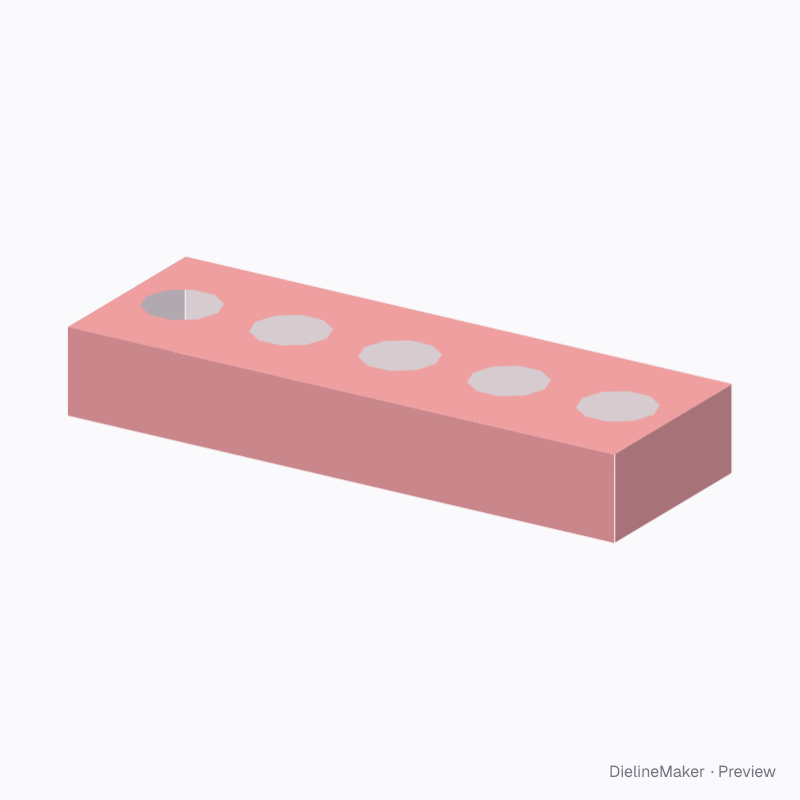

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-INSERT-TRAYTrays & lids
Lipstick insert, 5 dieline
A row of five holes for a lipstick or nail-polish set. A ready-sized preset of the insert tray — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside170 × 60 × 25 mm
Outside170 × 60 × 25 mm
Flat blank218 × 136 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-INSERT-TRAY
- Inside size
- Box inside length 170 · Box inside width 60 · Insert height 25 mm
- Size range
- Box inside length 40–500 · Box inside width 40–400 · Insert height 10–150 mm
- Manufacturing
- 170 × 60 × 25 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.025 m² · about 21 up on a 720 × 1020 mm sheet
- Default board
- Black-core board 350 g · 0.5 mm caliper
- Board options
- SBS 350Kraft 350FBB 400Black 350SBS 300GD2 350F-fluteE-flute WE-flute KSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-INSERT-TRAY blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for Black-core board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Insert platform | 168 × 58 | L − 2·fit × W − 2·fit |
| Back leg | 168 × 25 | – × insert height |
| Back foot | 168 × 14 | – |
| Front leg | 168 × 25 | – × insert height |
| Front foot | 168 × 14 | – |
| Left leg | 25 × 57 | – × insert height |
| Right leg | 25 × 57 | – × insert height |
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Cavity shape3 options
- Radial grip fingerson / off
- Hole diametermm
- Columnscount
- Rowscount
- Food contacton / off
The insert tray family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this lipstick insert, 5 yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
