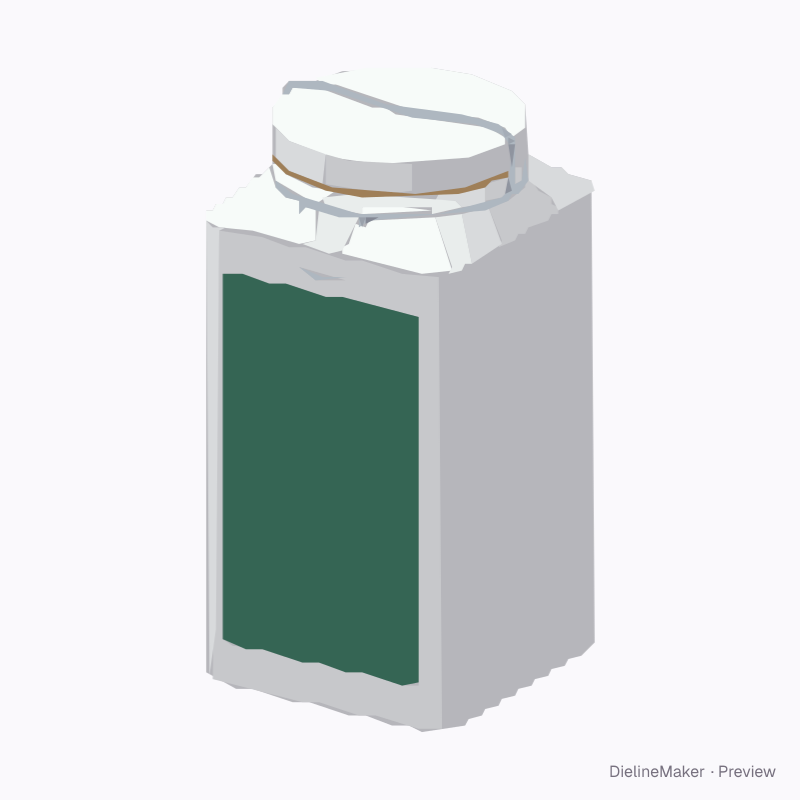

Preview image
A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementLabels
Tall pantry latch jar label template
100 × 100 × 200 mm starting dimensions. Adjust to your actual container or product. A ready-sized preset of the wire-bail storage jar — adjust the object dimensions and decoration area to preview your artwork at size.
Object size100 × 100 × 200 mm
Artwork area78 × 135.2 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Body width 100 · Body depth 100 · Overall height 200 mm
- Size range
- Body width 60–180 · Body depth 60–180 · Overall height 85–260 mm
- Parts
- 2 parts — Front label, Back label
- Artwork area
- 0.021 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 6 options; the template and 3D preview follow each change.
- Label width (0 = auto)mm
- Label height (0 = auto)mm
- Back labelon / off
- Body colour10 options
- Contents preview4 options
- Body material3 options
The wire-bail storage jar family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this tall pantry latch jar yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
