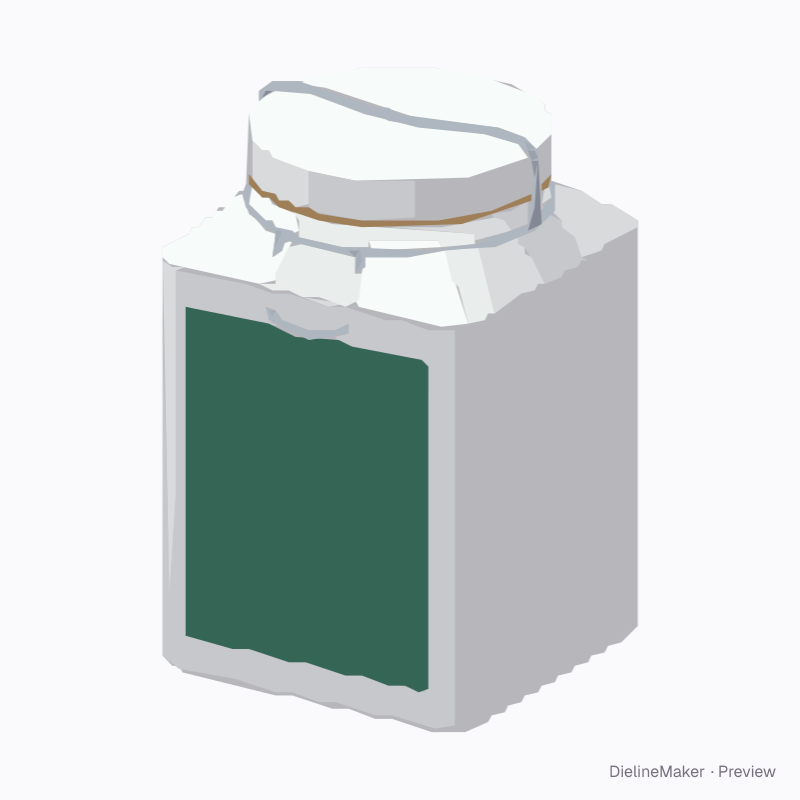

A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementLabels
Pantry storage jar 500 ml label template
A square glass storage jar with a glass lid, rubber gasket and actual wire-bail latch. Exports are its front and back labels; glass, sealing performance and latch tooling require the supplier’s drawing. A ready-sized preset of the wire-bail storage jar — adjust the object dimensions and decoration area to preview your artwork at size.
Object size95 × 90 × 145 mm
Artwork area73 × 91.2 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Body width 95 · Body depth 90 · Overall height 145 mm
- Size range
- Body width 60–180 · Body depth 60–180 · Overall height 85–260 mm
- Parts
- 2 parts — Front label, Back label
- Artwork area
- 0.013 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 6 options; the template and 3D preview follow each change.
- Label width (0 = auto)mm
- Label height (0 = auto)mm
- Back labelon / off
- Body colour10 options
- Contents preview4 options
- Body material3 options
The wire-bail storage jar family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this pantry storage jar 500 ml yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
