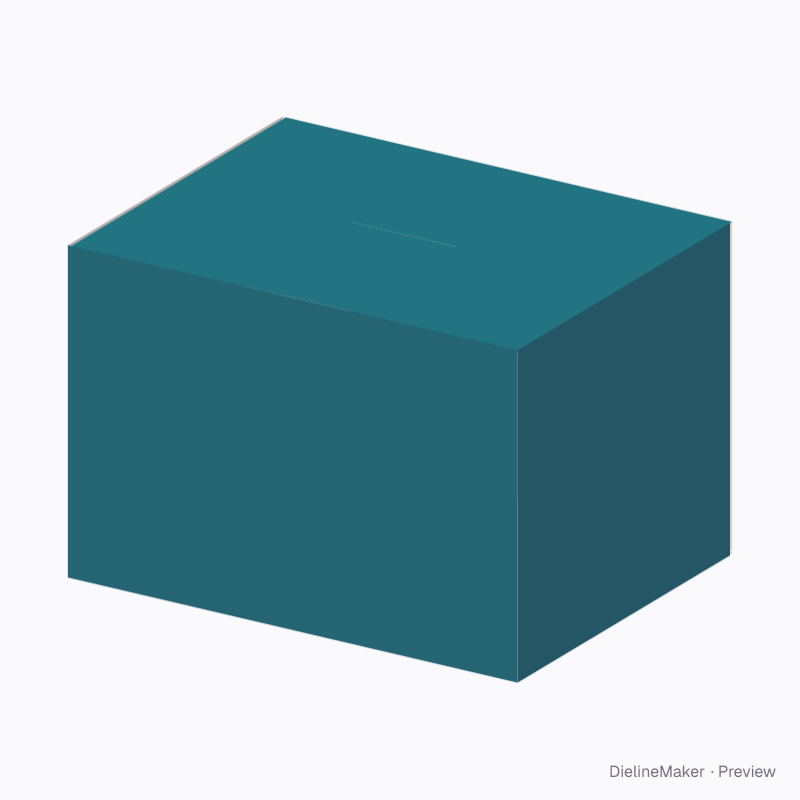

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0216Shipping
Archive storage carton — Lock-bottom shipping box dieline
Editable 420 × 320 × 280 mm starting point using lock-bottom shipping box. Adjust the dimensions to your product before prototyping. A ready-sized preset of the lock-bottom shipping box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside420 × 320 × 280 mm
Outside426.4 × 326.4 × 292.8 mm
Flat blank1521.6 × 656 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0216
- Inside size
- Length 420 · Width 320 · Height 280 mm
- Size range
- Length 100–1000 · Width 60–700 · Height 50–1000 mm
- Manufacturing
- 423.2 × 323.2 × 286.4 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.882 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteE-flute KE-flute WEB doubleF-flute
- Good for
The flat dieline

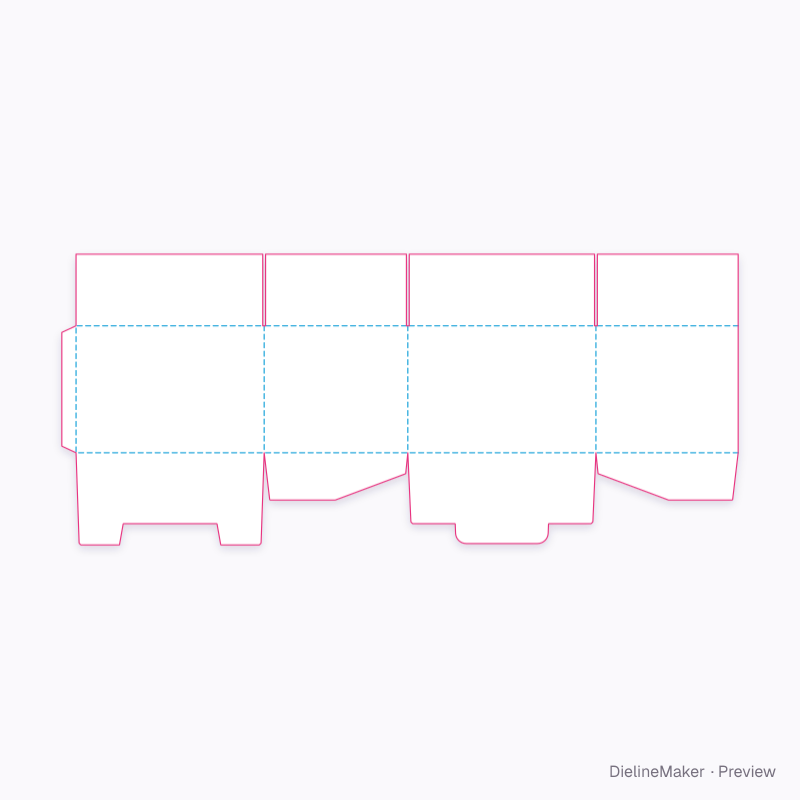

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0216 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 423.2 × 286.4 | L + T × H + 2T |
| Left side | 323.2 × 286.4 | W + T × H + 2T |
| Back | 423.2 × 286.4 | L + T × H + 2T |
| Right side | 320 × 286.4 | W × H + 2T |
| Glue flap | 32 × 286.4 | – × H + 2T |
| Snap end | 323.2 × 106.7 | W + T × – |
| Snap end | 320 × 106.7 | W × – |
| Snap bottom | 423.2 × 208 | L + T × – |
| Snap tuck | 423.2 × 204.8 | L + T × – |
| Top outer flap | 420 × 161.6 | L × – |
| Top inner flap ×2 | 316.8 × 161.6 | W − T × – |
| Top outer flap | 416.8 × 161.6 | L − T × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
