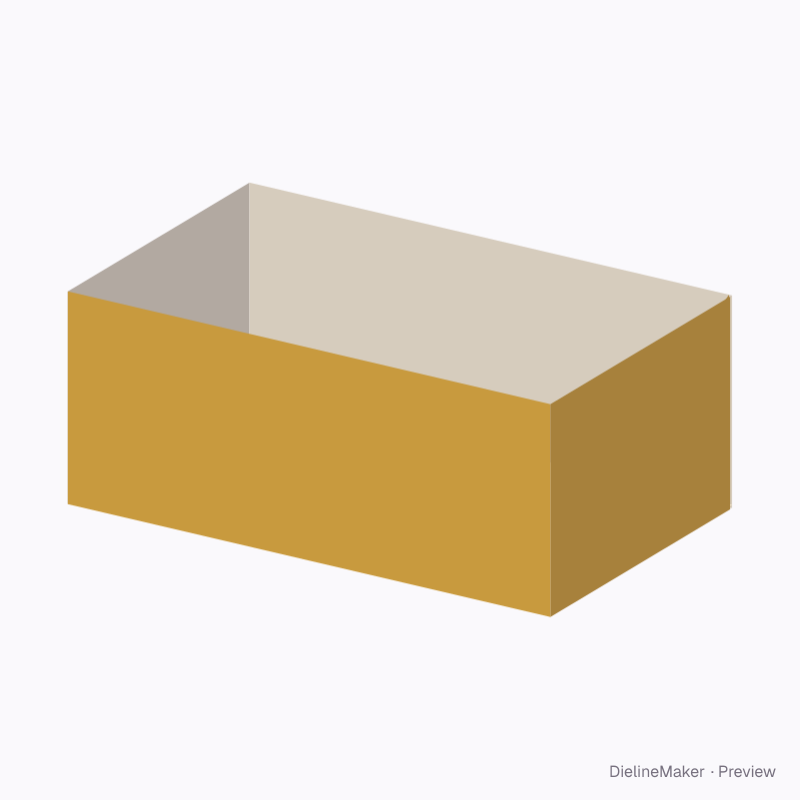

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0221Shipping
Produce box 500×300×200 dieline
Open-top fruit and vegetable box that squares up without staples. A ready-sized preset of the lock-bottom shipping box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside500 × 300 × 200 mm
Outside506.4 × 306.4 × 206.4 mm
Flat blank1641.6 × 398.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0221
- Inside size
- Length 500 · Width 300 · Height 200 mm
- Size range
- Length 100–1000 · Width 60–700 · Height 50–1000 mm
- Manufacturing
- 503.2 × 303.2 × 203.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.553 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteE-flute KE-flute WEB doubleF-flute
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0221 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 503.2 × 203.2 | L + T × H + T |
| Left side | 303.2 × 203.2 | W + T × H + T |
| Back | 503.2 × 203.2 | L + T × H + T |
| Right side | 300 × 203.2 | W × H + T |
| Glue flap | 32 × 203.2 | – × H + T |
| Snap end | 303.2 × 100 | W + T × – |
| Snap end | 300 × 100 | W × – |
| Snap bottom | 503.2 × 195 | L + T × – |
| Snap tuck | 503.2 × 191.8 | L + T × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Open top (0200/0216)on / off
- Tongue widthmm
- Tongue heightmm
- Hand holeson / off
