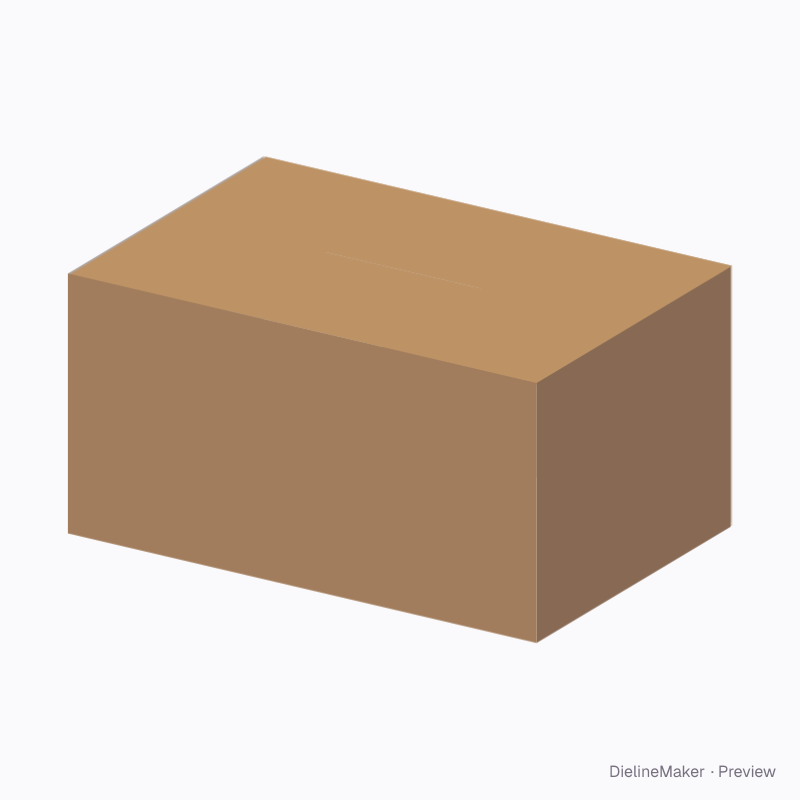

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0216Shipping
E-commerce shipper 300×200×150 dieline
E-flute shipper that packs faster than a taped RSC. A ready-sized preset of the lock-bottom shipping box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 200 × 150 mm
Outside303.2 × 203.2 × 156.4 mm
Flat blank1024.8 × 384 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0216
- Inside size
- Length 300 · Width 200 · Height 150 mm
- Size range
- Length 100–1000 · Width 60–700 · Height 50–1000 mm
- Manufacturing
- 301.6 × 201.6 × 153.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.347 m²
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- B-fluteE-flute KE-flute WEB doubleF-flute
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0216 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 301.6 × 153.2 | L + T × H + 2T |
| Left side | 201.6 × 153.2 | W + T × H + 2T |
| Back | 301.6 × 153.2 | L + T × H + 2T |
| Right side | 200 × 153.2 | W × H + 2T |
| Glue flap | 20 × 153.2 | – × H + 2T |
| Snap end | 201.6 × 66.7 | W + T × – |
| Snap end | 200 × 66.7 | W × – |
| Snap bottom | 301.6 × 130 | L + T × – |
| Snap tuck | 301.6 × 128.4 | L + T × – |
| Top outer flap | 300 × 100.8 | L × – |
| Top inner flap ×2 | 198.4 × 100.8 | W − T × – |
| Top outer flap | 298.4 × 100.8 | L − T × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
