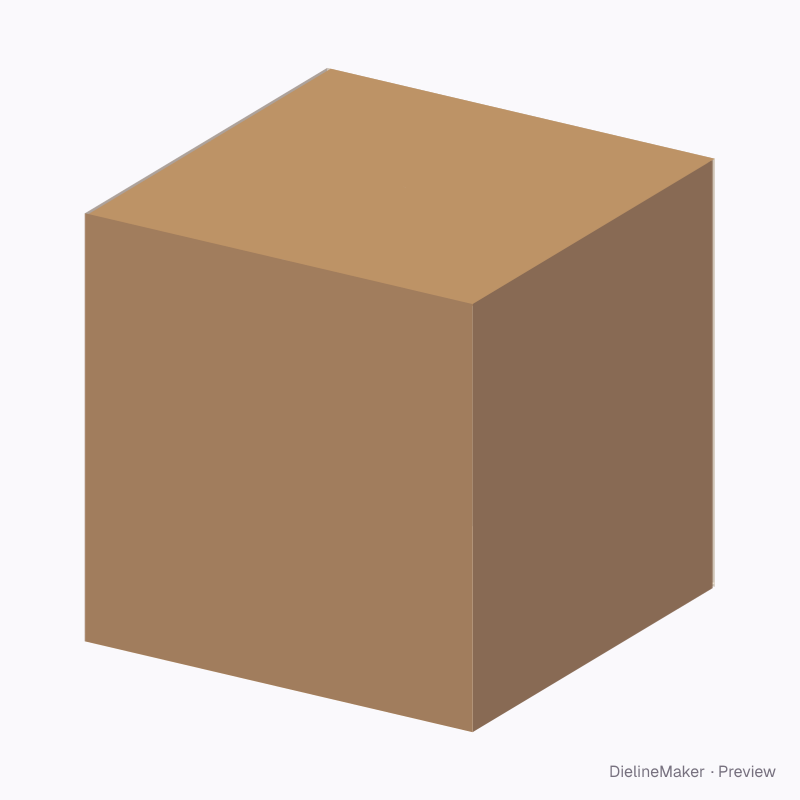

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0216Shipping
350 mm cube parcel carton — Lock-bottom shipping box dieline
Editable 350 × 350 × 350 mm starting point using lock-bottom shipping box. Adjust the dimensions to your product before prototyping. A ready-sized preset of the lock-bottom shipping box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside350 × 350 × 350 mm
Outside356.4 × 356.4 × 362.8 mm
Flat blank1441.6 × 760.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0216
- Inside size
- Length 350 · Width 350 · Height 350 mm
- Size range
- Length 100–1000 · Width 60–700 · Height 50–1000 mm
- Manufacturing
- 353.2 × 353.2 × 356.4 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.965 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteE-flute KE-flute WEB doubleF-flute
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0216 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 353.2 × 356.4 | L + T × H + 2T |
| Left side | 353.2 × 356.4 | W + T × H + 2T |
| Back | 353.2 × 356.4 | L + T × H + 2T |
| Right side | 350 × 356.4 | W × H + 2T |
| Glue flap | 32 × 356.4 | – |
| Snap end | 353.2 × 116.7 | – |
| Snap end | 350 × 116.7 | – |
| Snap bottom | 353.2 × 227.5 | – |
| Snap tuck | 353.2 × 224.3 | – |
| Top outer flap | 350 × 176.6 | – |
| Top inner flap ×2 | 346.8 × 175.6 | – |
| Top outer flap | 346.8 × 176.6 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Open top (0200/0216)on / off
- Tongue widthmm
- Tongue heightmm
- Hand holeson / off
