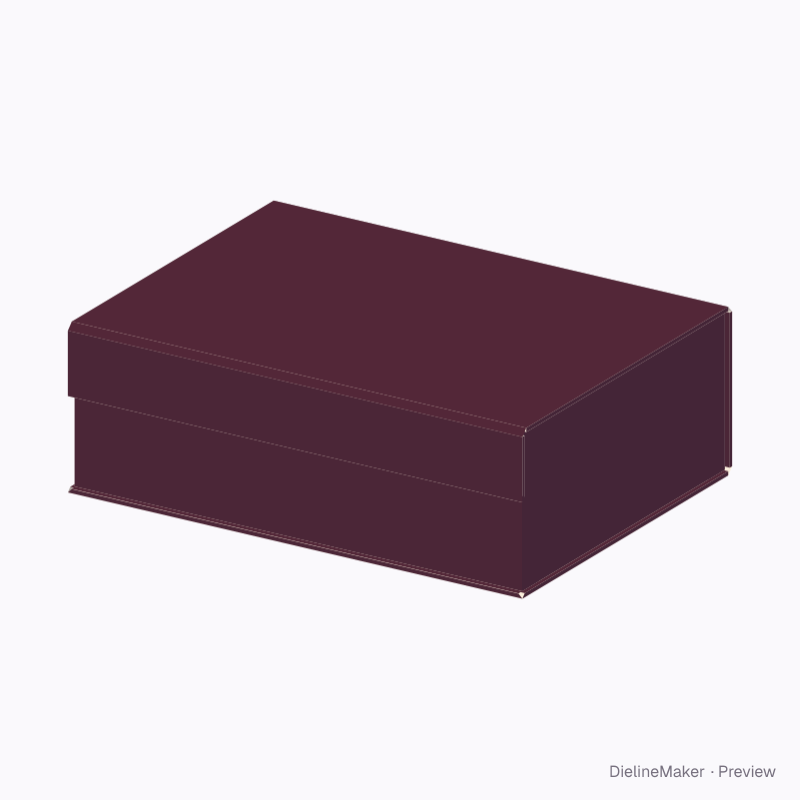

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureRigid
Magnetic gift box dieline
All-round gift and chocolate box with a two-magnet closure. A ready-sized preset of the magnetic book box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside250 × 180 × 80 mm
Outside258.2 × 190.7 × 87.6 mm
Flat blank292.5 × 534.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Length 250 · Depth 180 · Height 80 mm
- Size range
- Length 60–500 · Depth 50–400 · Height 20–200 mm
- Manufacturing
- 254 × 185.5 × 84 mm score to score · inside vs outside sizes
- Parts
- 5 parts — Cover wrap, Tray wrap, Inside liner, Case boards, Tray board
- Board area
- 0.588 m² · about 3 up on a 720 × 1020 mm sheet
- Default board
- Rigid greyboard 2 mm · 2 mm caliper
- Board options
- Rigid 2 mmRigid 1.5
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Kiss cut
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (2 mm for Rigid greyboard 2 mm). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| BaseCover wrap | 258.2 × 187.1 | L + 2Tb + p + 2S × W + 3Tb + 3p + c |
| Back hingeCover wrap | 258.2 × 5 | – × j |
| SpineCover wrap | 258.2 × 80.5 | L + 2Tb + p + 2S × H + 3Tb + 5p + c − √2·j |
| Lid hingeCover wrap | 258.2 × 5 | – × j |
| LidCover wrap | 258.2 × 183.6 | L + 2Tb + p + 2S × W + 3Tb + 3p + c − j/√2 |
| Flap hingeCover wrap | 258.2 × 5 | – × j |
| Front flapCover wrap | 258.2 × 34 | L + 2Tb + p + 2S × F |
| Base left rimCover wrap | 2.2 × 187.1 | – |
| Base left turn-inCover wrap | 15 × 185 | – |
| Base right rimCover wrap | 2.2 × 187.1 | – |
| Base right turn-inCover wrap | 15 × 185 | – |
| Spine left rimCover wrap | 2.2 × 80.5 | – |
| Spine left turn-inCover wrap | 15 × 80.5 | – |
| Spine right rimCover wrap | 2.2 × 80.5 | – |
| Spine right turn-inCover wrap | 15 × 80.5 | – |
| Lid left rimCover wrap | 2.2 × 183.6 | – |
38 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 12 options; the template and 3D preview follow each change.
- Flap depthmm
- Magnetscount
- Magnet diametermm
- Flap profile3 options
- Flap cut depthmm
- Carry grip slotson / off
- Inside lineron / off
- Ring insert slotscount
- Ring slot lengthmm
- Ring insert heightmm
- Inner lid display frameon / off
- Aligned hand apertureon / off
The magnetic book box family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this magnetic gift box yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
