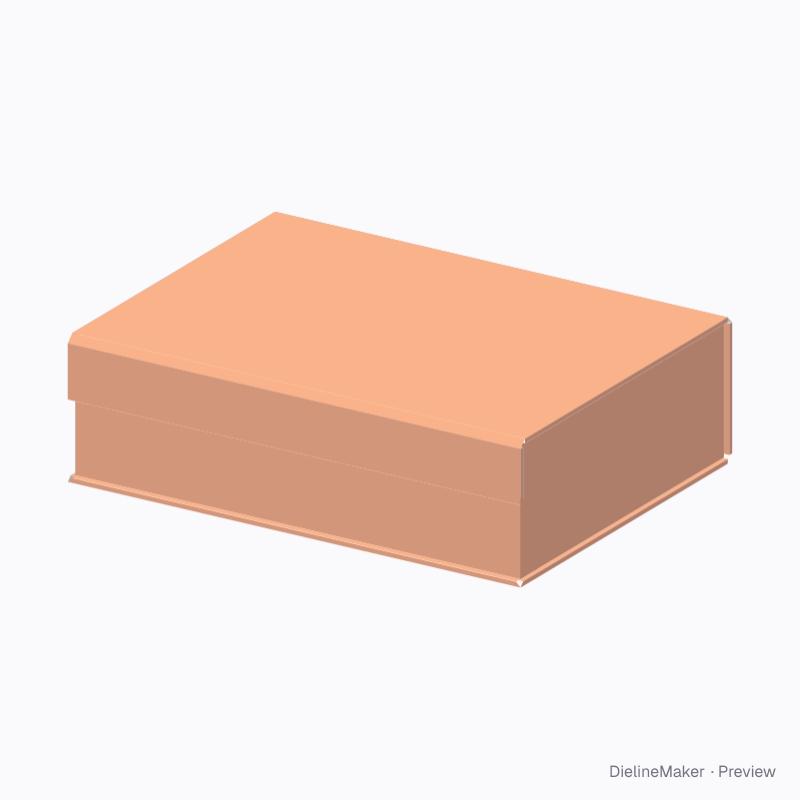

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureRigid
Skincare set book box dieline
Magnetic flap box for a cleanser, serum and cream trio. A ready-sized preset of the magnetic book box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside220 × 160 × 60 mm
Outside228.2 × 170.7 × 67.6 mm
Flat blank262.5 × 466.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Length 220 · Depth 160 · Height 60 mm
- Size range
- Length 60–500 · Depth 50–400 · Height 20–200 mm
- Manufacturing
- 224 × 165.5 × 64 mm score to score · inside vs outside sizes
- Parts
- 5 parts — Cover wrap, Tray wrap, Inside liner, Case boards, Tray board
- Board area
- 0.442 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- Rigid greyboard 2 mm · 2 mm caliper
- Board options
- Rigid 2 mmRigid 1.5
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Kiss cut
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (2 mm for Rigid greyboard 2 mm). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| BaseCover wrap | 228.2 × 167.1 | L + 2Tb + p + 2S × W + 3Tb + 3p + c |
| Back hingeCover wrap | 228.2 × 5 | – × j |
| SpineCover wrap | 228.2 × 60.5 | L + 2Tb + p + 2S × H + 3Tb + 5p + c − √2·j |
| Lid hingeCover wrap | 228.2 × 5 | – × j |
| LidCover wrap | 228.2 × 163.6 | L + 2Tb + p + 2S × W + 3Tb + 3p + c − j/√2 |
| Flap hingeCover wrap | 228.2 × 5 | – × j |
| Front flapCover wrap | 228.2 × 26 | L + 2Tb + p + 2S × F |
| Base left rimCover wrap | 2.2 × 167.1 | – |
| Base left turn-inCover wrap | 15 × 165 | – |
| Base right rimCover wrap | 2.2 × 167.1 | – |
| Base right turn-inCover wrap | 15 × 165 | – |
| Spine left rimCover wrap | 2.2 × 60.5 | – |
| Spine left turn-inCover wrap | 15 × 60.5 | – |
| Spine right rimCover wrap | 2.2 × 60.5 | – |
| Spine right turn-inCover wrap | 15 × 60.5 | – |
| Lid left rimCover wrap | 2.2 × 163.6 | – |
38 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 12 options; the template and 3D preview follow each change.
- Flap depthmm
- Magnetscount
- Magnet diametermm
- Flap profile3 options
- Flap cut depthmm
- Carry grip slotson / off
- Inside lineron / off
- Ring insert slotscount
- Ring slot lengthmm
- Ring insert heightmm
- Inner lid display frameon / off
- Aligned hand apertureon / off
