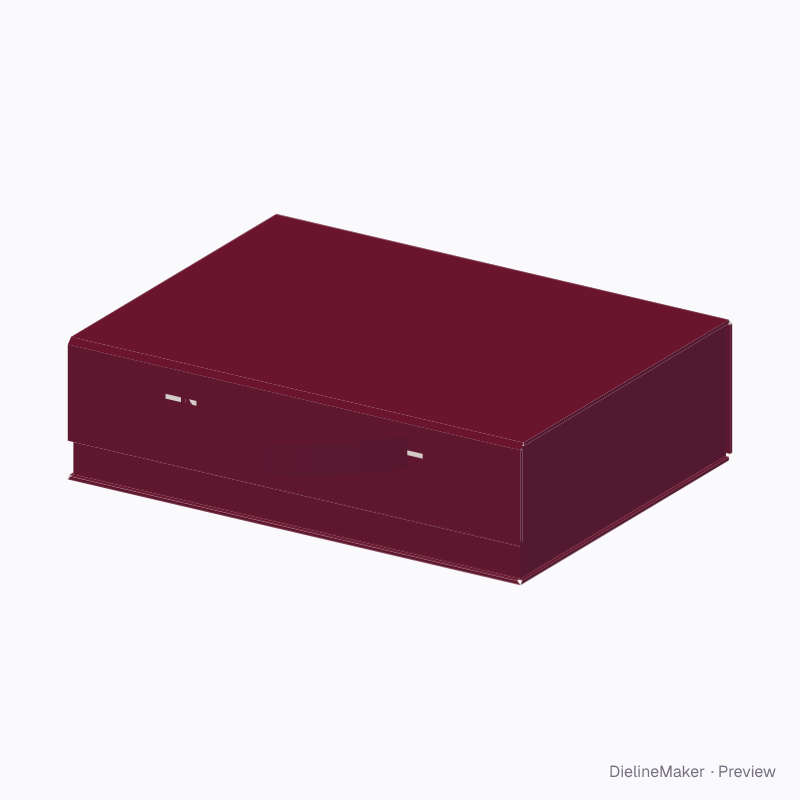

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-RIGID-CARRY-GRIP-01Rigid
Presentation case with carry grip dieline
Magnetic book box with two mounting slots in the front flap for an external strap grip. A ready-sized preset of the magnetic book box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 220 × 80 mm
Outside308.2 × 230.7 × 87.6 mm
Flat blank342.5 × 640.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-RIGID-CARRY-GRIP-01
- Inside size
- Length 300 · Depth 220 · Height 80 mm
- Size range
- Length 60–500 · Depth 50–400 · Height 20–200 mm
- Manufacturing
- 304 × 225.5 × 84 mm score to score · inside vs outside sizes
- Parts
- 6 parts — Cover wrap, Tray wrap, Inside liner, Case boards, Tray board, Carry grip
- Board area
- 0.818 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- Rigid greyboard 2 mm · 2 mm caliper
- Board options
- Rigid 2 mmRigid 1.5
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Kiss cut
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-RIGID-CARRY-GRIP-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (2 mm for Rigid greyboard 2 mm). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| BaseCover wrap | 308.2 × 227.1 | L + 2Tb + p + 2S × W + 3Tb + 3p + c |
| Back hingeCover wrap | 308.2 × 5 | – × j |
| SpineCover wrap | 308.2 × 80.5 | L + 2Tb + p + 2S × H + 3Tb + 5p + c − √2·j |
| Lid hingeCover wrap | 308.2 × 5 | – × j |
| LidCover wrap | 308.2 × 223.6 | L + 2Tb + p + 2S × W + 3Tb + 3p + c − j/√2 |
| Flap hingeCover wrap | 308.2 × 5 | – × j |
| Front flapCover wrap | 308.2 × 60 | L + 2Tb + p + 2S × F |
| Base left rimCover wrap | 2.2 × 227.1 | – |
| Base left turn-inCover wrap | 15 × 225 | – |
| Base right rimCover wrap | 2.2 × 227.1 | – |
| Base right turn-inCover wrap | 15 × 225 | – |
| Spine left rimCover wrap | 2.2 × 80.5 | – |
| Spine left turn-inCover wrap | 15 × 80.5 | – |
| Spine right rimCover wrap | 2.2 × 80.5 | – |
| Spine right turn-inCover wrap | 15 × 80.5 | – |
| Lid left rimCover wrap | 2.2 × 223.6 | – |
46 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 16 options; the template and 3D preview follow each change.
- Flap depthmm
- Magnetscount
- Magnet diametermm
- Flap profile3 options
- Flap cut depthmm
- Carry grip slotson / off
- Grip strap widthmm
- Grip slot spacingmm
- Grip colour (preview)6 options
- Grip slot positionmm
- Inside lineron / off
- Ring insert slotscount
- Ring slot lengthmm
- Ring insert heightmm
- Inner lid display frameon / off
- Aligned hand apertureon / off
