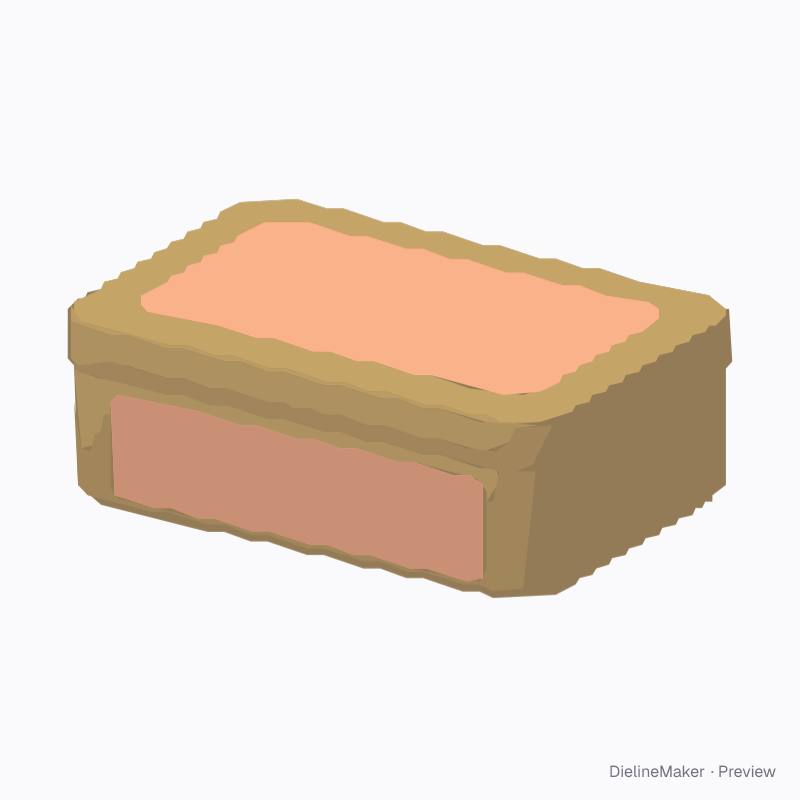

Preview image
A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementLabels
Solid balm tin label template
Pressed rectangular metal tin with a rolled rim and a separate slip lid or an attached rear-hinged lid. The hinged lid opens with its own artwork. Exports provide front, back and lid graphic areas; exact tinplate forming tools, hinge construction and food-contact coatings require the maker’s drawing. A ready-sized preset of the rectangular metal tin — adjust the object dimensions and decoration area to preview your artwork at size.
Object size72 × 48 × 25 mm
Artwork area59.5 × 35.5 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Body width 72 · Body depth 48 · Overall height 25 mm
- Size range
- Body width 45–220 · Body depth 35–180 · Overall height 25–220 mm
- Parts
- 3 parts — Front label, Back label, Lid label
- Artwork area
- 0.004 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 9 options; the template and 3D preview follow each change.
- Label width (0 = auto)mm
- Label height (0 = auto)mm
- Back labelon / off
- Body colour10 options
- Cap colour10 options
- Lid construction3 options
- Hinged lid open angle°
- Lid labelon / off
- Contents preview4 options
The rectangular metal tin family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this solid balm tin yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
