The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA A20.20.03.01Tuck end
Light bulb box dieline
Carton for an A60 LED bulb with an E27 cap. A ready-sized preset of the reverse tuck end — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside62 × 62 × 112 mm
Outside63 × 63 × 113 mm
Flat blank261.5 × 265.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA A20.20.03.01
- Inside size
- Length 62 · Width 62 · Height 112 mm
- Size range
- Length 20–400 · Width 12–300 · Height 20–500 mm
- Manufacturing
- 62.5 × 62.5 × 112.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.045 m² · about 9 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400GD2 350Kraft 350Black 350F-fluteE-flute WPET 0.3SBS 18 pt
- Good for

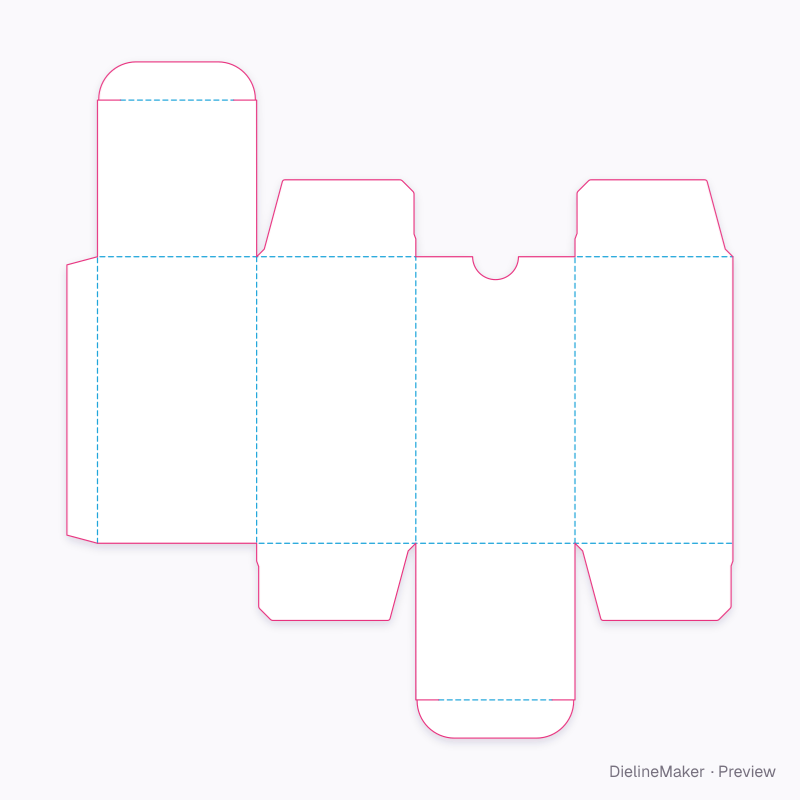

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA A20.20.03.01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 62.5 × 112.5 | – × H + T |
| Left side | 62.5 × 112.5 | – × H + T |
| Back | 62.5 × 112.5 | – × H + T |
| Right side | 62 × 112.5 | – × H + T |
| Glue flap | 12 × 112.5 | – × H + T |
| Top closure | 62.5 × 61.5 | – |
| Top tuck | 61.5 × 15 | – |
| Top dust flap | 62.5 × 30.3 | – |
| Top dust flap | 62 × 30.3 | – |
| Bottom closure | 62.5 × 61.5 | – |
| Bottom tuck | 61.5 × 15 | – |
| Bottom dust flap | 62.5 × 30.3 | – |
| Bottom dust flap | 62 × 30.3 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 8 options; the template and 3D preview follow each change.
- Tuck depthmm
- Slit lockon / off
- Thumb notchon / off
- Notch radiusmm
- Windowon / off
- Zigzag flap edges4 options
- Safety clasp3 options
- Clasp widthmm
